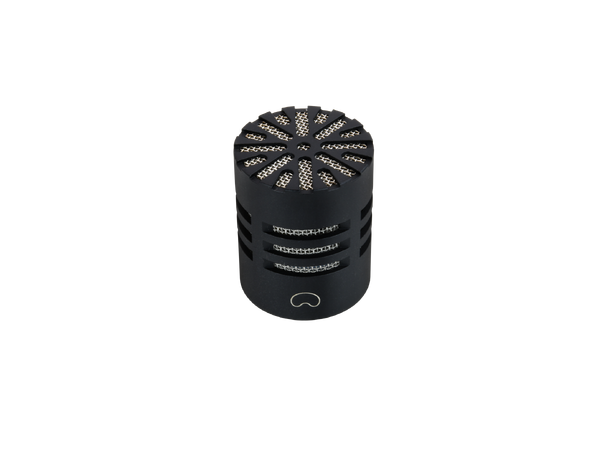

M 40
microphone capsule
Microtech
Gefell introduces with Generation 4 a new modular microphone system.

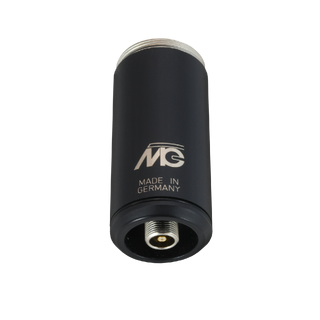

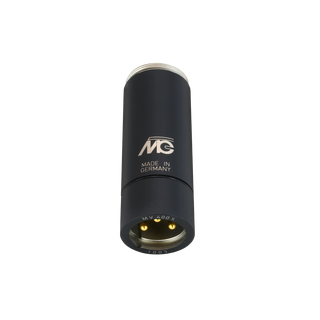

The start of Generation 4 includes the ultra-compact microphone
preamplifier MV 400 with two alternative connectors, the microphone
capsules M 40 (cardioid), M 41 (super cardioid), M 42 (omnidirectional)
and M 43 (wide-cardioid) as well as options and accessories for
professional use. The advantage of the modular concept is a fast
reaction to changing requirements and a more productive workflow. With
Generation 4, Microtech Gefell evolves from their existing tradition of
modular microphone systems into a new and ultra-compact dimension.
technical data
| Polar pattern | cardioid |
| Acoustic operating principle | pressure gradient transducer |
| Frequency range | 20 Hz to 20 kHz |
| Sensitivity at 1 kHz | 13 mV/Pa |
| Output impedance | 100 Ohm |
| Noise level | IEC 268-4 | 14 dB(A) |
| CCIR 468-4 | 25 dB |
| Signal-to-noise ratio | A-weighted | 80 dB |
| CCIR weighted | 69 dB |
| SPL for THD 0,5 % | 146 dB |
| Max. output level | RL = 10 kOhm | 18 dBu |
| RL = 1 kOhm | 17 dBu |
| Dynamic range | 132 dB |
| Current consumption | P48, IEC 61938 | 4 mA |
| Weight | 26 g |
| Length | 26 mm |
| Diameter | 21 mm |
| Surface | black matt |
