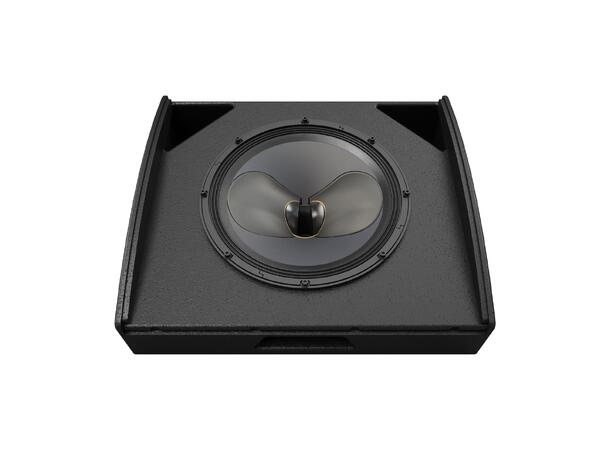

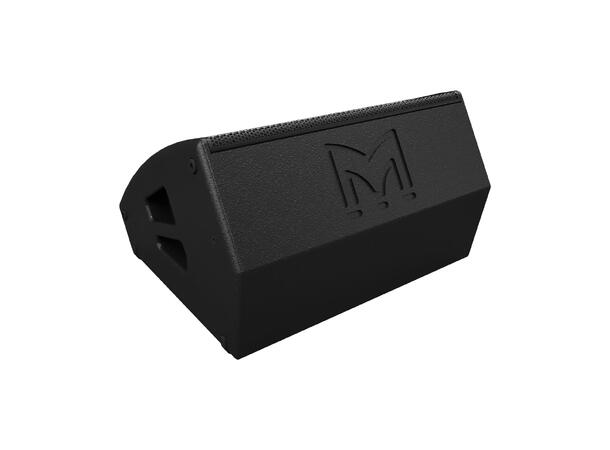

Martin Audio LE200

The LE200 is a high-performance, compact two-way passive stage monitor designed for demanding professional applications. It features a powerful 15” (380mm) LF / 1.4” (35mm) exit HF Coaxial Differential Dispersion driver, delivering extended low-frequency response and enhanced projection with consistent coverage across the listening area. The LF driver incorporates a 3” (76mm) voice coil with a high-efficiency motor system and an aluminium demodulating ring to minimise distortion. The HF driver features a 3” (76mm) polyimide diaphragm and an advanced low-compression phase plug, ensuring smooth, accurate high-frequency reproduction.

Features

• High-output, two-way passive stage monitor

• Coaxial ‘point-source’ performance

• Enhanced Differential Dispersion™ technology for wider, more consistent coverage

• Optimised rectangular coverage plane at performer head-height

• Durable, low-profile birch plywood enclosure

• Integrated pole-mount socket with removable bung

• Multiple NL4 connectors for flexible signal routing

• M8 rigging points for versatile mounting options

Applications

• High-SPL stage monitor for touring and festivals

• Pole-mounted fill or standalone PA system

• Drumfill or sidefill with subwoofer support

The LE200 utilises Martin Audio’s latest Coaxial Differential Dispersion technology to produce a horizontal coverage pattern that transitions from a wide 120° close to the monitor to 60° further away, ensuring a stable and even coverage field. This unique tapering provides a near-rectangular sound field at head height—delivering a balanced, consistent mix regardless of distance.

The rugged enclosure is crafted from premium-grade birch and poplar plywood, finished in hard-wearing textured black paint. A reinforced steel grille with acoustically transparent backing protects the coaxial driver, while rubber feet provide stability and protection on stage surfaces. Ergonomic handles and five strategically placed NL4 connectors allow for fast, versatile deployment in multiple configurations.

Whether deployed as a wedge, sidefill, or flown using integrated rigging points, the LE200 offers a powerful, flexible monitoring solution suitable for any stage.

Specifications

• Type: Two-way passive, Coaxial Differential Dispersion stage monitor

• Frequency Response: 65Hz–20kHz ±3dB, -10dB @ 52Hz

• Drivers:

  • LF: 15” (380mm) / 3” (76mm) voice coil, high-excursion ferrite motor

  • HF: 1.4” (35mm) exit / 3” (76mm) voice coil, polyimide diaphragm compression driver

• Rated Power: 500W AES, 2000W peak

• Sensitivity: 99dB

• Maximum SPL: 133dB peak

• Nominal Impedance: 8O

• Dispersion: (-6dB) 120°–60° horizontal, 60° vertical

• Crossover: 1.5kHz passive

• Enclosure: Birch/poplar ply

• Finish: Black textured paint

• Protective Grille: Black perforated steel with acoustic scrim

• Baffle Angle: 27°

• Connectors: 5 x NL4 type

• Pin Connections: 1+/1-

• Fittings:

  • 2 x pocket handles

  • Protective rubber feet on base and sides

  • 4 x M8 inserts

  • Pole-mount socket

• Dimensions (W x H x D): 520mm x 330mm x 490mm

• Weight: 21kg (46.3lbs)
