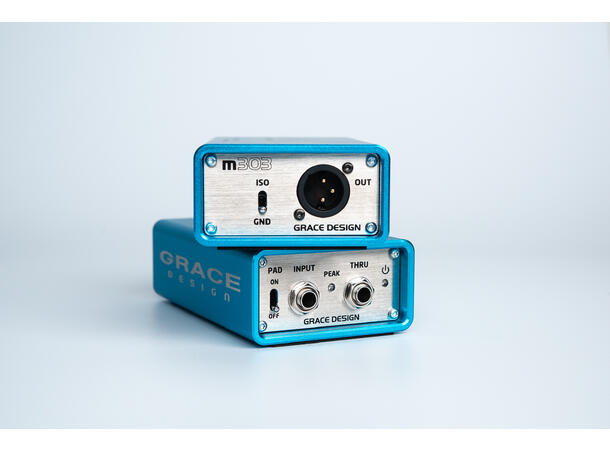

Grace Design m303 DI

The all new Grace Design m303 is an active, truly-isolated direct box,
delivering next-generation audio performance for  all live stage and studio
applications. Our advanced power supply design provides incredible headroom and
dynamic  range. A custom-wound Lundahl transformer outputs amazing low-end
clarity and high frequency detail. All of this  performance is packaged in a
beautiful and rugged ¼” extruded aluminum chassis. Don’t let the elegant
exterior fool  you, this thing is built

Features ?

Phantom powered active DI with full galvanic isolation. ?

Custom wound Lundahl transformer, magnetically shielded with a high nickel core ?

Ultra-low distortion (below -100dB at 1kHz, below -80dB at 50Hz) ?

Ultra-low noise (-118dBu, A weighting) ?

 Ultra-wide bandwidth 20-80kHz ?

Wide dynamic range (124dB) ?

Excellent low frequency headroom THD+N @50Hz <-80dB (0.007%) ?

1M Ohm input impedance works with any line or pickup signal source ?

Peak indicator LED - 3dB before clipping ?

Power indicator LED ?

Efficient design only draws 4mA of phantom power current ?

Through signal connector ?

Fully ESD and RFI protected ?

Input pad (13dB) for high level signals ?

High-quality gold contact toggle switches ?

Very rugged 1/4" wall extruded aluminum chassis, recessed connectors

m303 advantages over many other DI products

?

Signature Grace Design transparent, musical audio performance ?

Active design with true galvanic isolation ?

World class Lundahl transformer ?

Incredibly low distortion and noise with wide dynamic range ?

Deep, rock-solid bass response ?

1M ohm input impedance ?

Durable, designed for years of reliability ?

Backed by a 5 year warranty ?

Made in the USA
