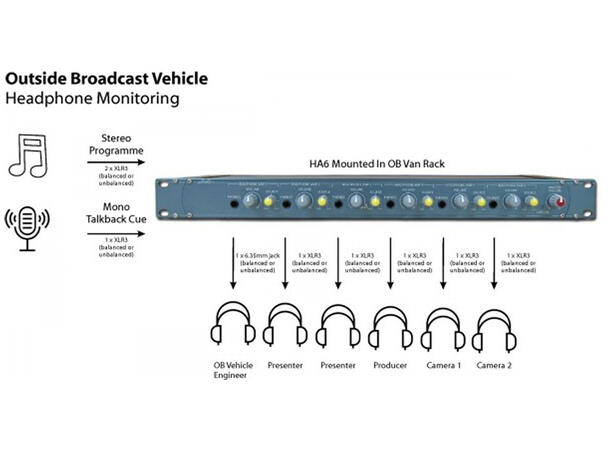

The Signature HA6+ is a broadcast specification, six way headphone amplifier, designed to operate in a mono or a stereo mode.
The HA6+ has 2 x XLR inputs that are used as the primary programme
audio input, and 2 x XLR inputs that are used for the secondary aux
audio input. These can be stereo, or, if a mono input, can be switched
to appear on both sides of the headphones. There are left and right
primary input gain controls on the rear panel, and they are on recessed
screw terminals.

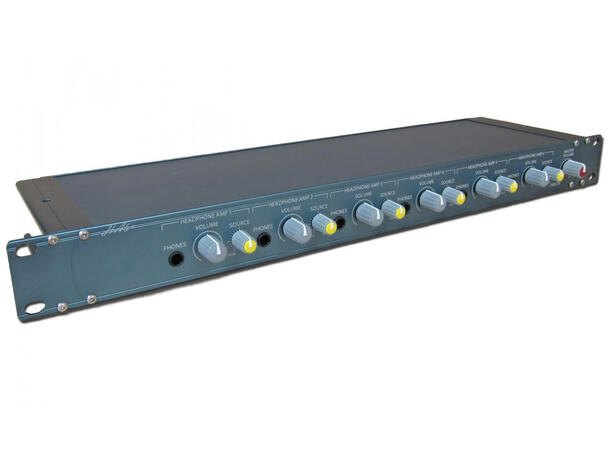

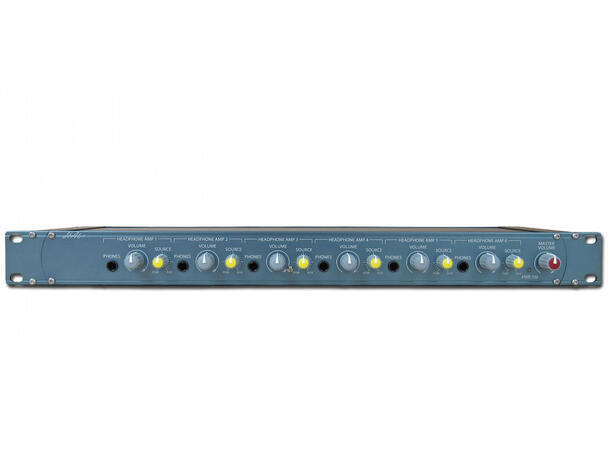

On the front panel there is a source control for each headphone
output that allows a mix between the programme and aux input. Full left
is programme only, full right is aux only, and anywhere in between is a
variable mix.
Each of the six headphone amplifiers has its own volume level pot.
There is also a master volume pot that controls the overall level of all
amplifiers. This can be defeated via a rear panel dip switch.

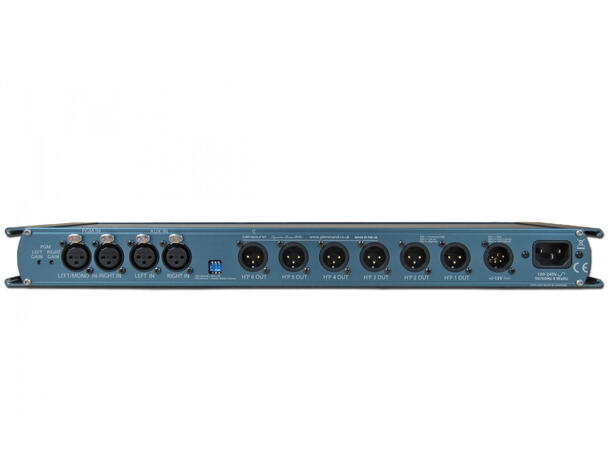

Each
of the six headphone outputs are available via front panel 6.35mm jack
sockets, and in parallel on rear panel XLR connectors.
Rear panel inputs and outputs are electronically balanced on XLRs and can accommodate unbalanced connections if required.
Power is provided by an internal switch mode power supply, with a
wide input range. There is also an input for external 12v DC power. The
12v DC input can be connected to the optional Signature PS1external DC
Master Power Station, for situations where a redundant power supply is
desirable.
A bright front panel LED indicates that the unit is operational.
AUDIO INPUTS
Maximum Input Level: +24dBu
Input Impedance: 30k
Programme Input Type: Sophisticated electronically balanced
(can be wired unbalanced)
Programme Input Circuit: Stereo or mono (via rear panel switch)
Programme Input Connectors: 2 x Neutrik 3 pin XLR sockets
Cue Input Type: Sophisticated electronically balanced
(can be wired unbalanced)
Cue Input Circuit: Stereo
Cue Input Connectors: 2 x Neutrik 3 pin XLR sockets
Coarse Gain Range: 20dB on programme input only
Front Panel Volume Pots Range: 75dB (-65dB to +10dB)
Front Panel Source Control Range: 70dB (-70dB to 0dBu)
HEADPHONE OUTPUTS
Output Type: Sophisticated
electronically balanced. They can accept mono or stereo jacks with
automatic level correction for low or high impedance headphones.
Output Connectors: Front panel Neutrik A-gauge TRS 6.35mm (1/4") jack socket in parallel with rear panel Neutrik 3 pin XLR plug
Frequency Response: -2.0dB 20Hz, -0.5dB 20kHz
Maximum Output Level: +19dBu/67.07mW into 600 ohms and +8dBu/6.2mW into 32 ohms
Distortion: <0.02%THD@100Hz & 0.005%@10kHz. Reference to +8dBu output
Noise: >-83.3dB @ line up unweighted RMS (22Hz to 22kHz)
Headphone Impedance: 32-1000 ohms
Crosstalk: Programme to Aux Input 1k tone @ line up -72dBu
POWER
Mains Input: Filtered IEC, 100 to 240VAC 47 - 63Hz
AC Consumption: 4 Watts@230VAC
Internal Mains Fuse: 20mm 1A Anti Surge
DC Input: 4 Pin Neutrik XLR plug +/- 12V
DC Consumption: +12V=150mA, -12V=150mA
PHYSICAL
Size: 445 x 123 x 44mm (LxDxH) no rack ears, 482mm 19” (1RU) with rack ears
Weight: 1.26kg
Shipping Weight: 2.7kg
Shipping Carton: Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH
Mechanics: All aluminium construction, anodized and laser etched
