Glensound Lodge

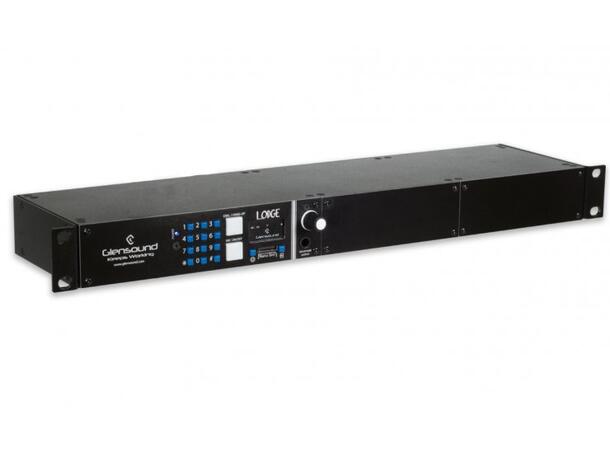

The Lodge is the 19" rackmount home of the NOMAD mobile phone hybrid.
The Lodge is the latest mobile phone hybrid from Glensound building on the success of the classic GS-MPI004(HD). Using the latest phone module allowing greater worlwide compatibility and full HD voice over LTE for territories that no longer have 3G services. The Lodge is also compatible on existing 2G and 3G networks.
Using the same network provider (where HD Voice is available) on either end of the call allows 7kHz audio links to be made for perfect speech performance.
The OLED screen now allows simple configuration and monitoring of call functions such as signal strength and caller ID, and the input now has a configurable on/off or cough button.
The line output can now bet set for a true balancing unit with just the isolated remote end audio, or it can be mixed with the input for a complete programme feed.
Mains AC, external DC or USB power.
- 4G Vo-LTE Rack Mount Mobile Phone Hybrid
- One x mic/48V/line inputs with adjustable gain
- OLED screen

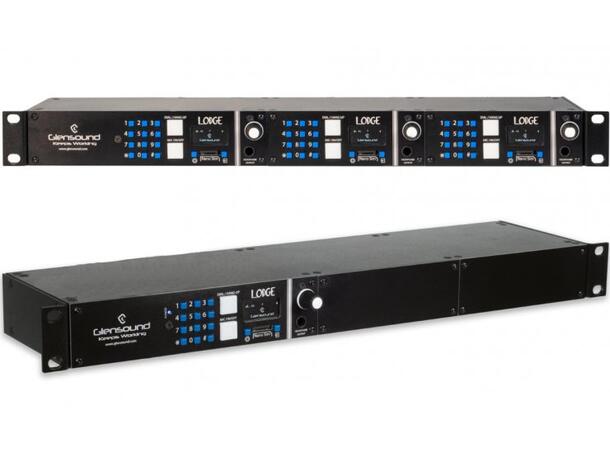

- Available with 1, 2, or 3 phone modules
- Mains AC, external DC or USB power
NETWORK
Frequency Bands
- LTE-FDD: B1/B2/B3/B4/B5/B6/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28.
- LTE-TDD: B28/B39/B40/B41.
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- GSM: B2/B3/B5/B8
- Certifications Carrier: AT&T/ U.S. Cellular (America) *, Deutsche Telekom (Europe), Telus (Canada)
SPECIFICATIONS
2G Audio Frequency Response
- Telephone networks provide 300Hz to 3.4 kHz audio bandwidth
- 3G/4G HD Voice Frequency Response
- HD Voice provides 50Hz to 7kHz audio bandwidth
Algorithm - HD Voice is AMR-WB (G722.2)
Network Compatibility - Will operate on most mobile phone network and most SIM cards *
HD Voice Compatibility - Will operate on any compatible HD voice networks

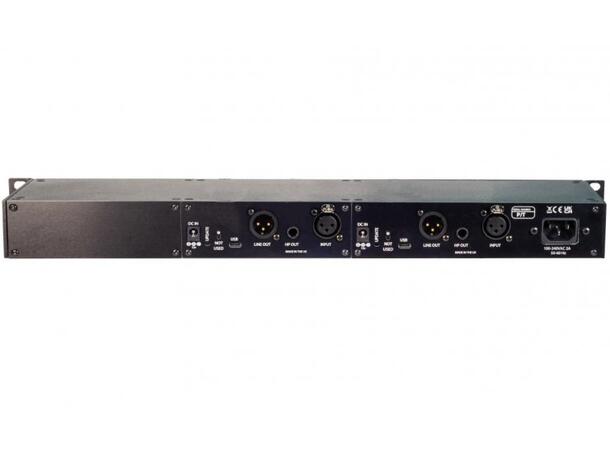

INPUTS AND OUTPUTS - Mic Inout Connector
- Neutrik balanced XLR
Line Out - Neutrik balanced XLR
Headphone Out - 6.35mm Jack Socket
Line in Level - odBu
Dynamic Mic Line Up - -46dBu
Phanthom Mic Line up - -46dBu
Line Input Gain Range - +/- 15 dB
Mic Input Gain Range Rate - +/- 15dB
Headroom @ Mic Line Up - 30dB
Output Level - 1dBu
Output Gain Control - Fixed
Max Output Level - +19dBu
POWER - Mains Input
- Filtered IEC, 100-240VAC (+/- 10%) 50/60Hz
External DC Input - +10 to +15 VDC, 2.5mm barrel connector
USB - Type C connection
Power On LED - Bright Blue
AERIAL - Aerial Connector Type
- 2x SMA
Aerial Technology - Diversity
RF Output Power - 2 Watts
PHYSICAL
Size - 19" Wide 1RU high 140mm Deep
Weight - 1.35 kg (with 3x Modules)
ENVIRONMENT - Operating Temperature
- 0 to +50 oC (32 to 122 oF)
Storage Temperature - -20 to +70 oC (-4°C to 158 oF)
Relative Humidty - 0 to 95% non-condensing
INCLUDED ITEMS - Handbook
- Available by Download
Aerial - 2x 2.5 T Bar Antenna
* Please Check with Glensound on Network Compatibility
