Glensound Beatrice B2/5F 2 Channel

Ultra Compact Beltpack with 5pin XLR F

Varenr: 118403
-+
Utsolgt (13 dager)
Send meg mail når varen er på lager
BeskrivelseTeknisk infoRESSURSER
Beskrivelse

Beatrice B2 Wiring Info

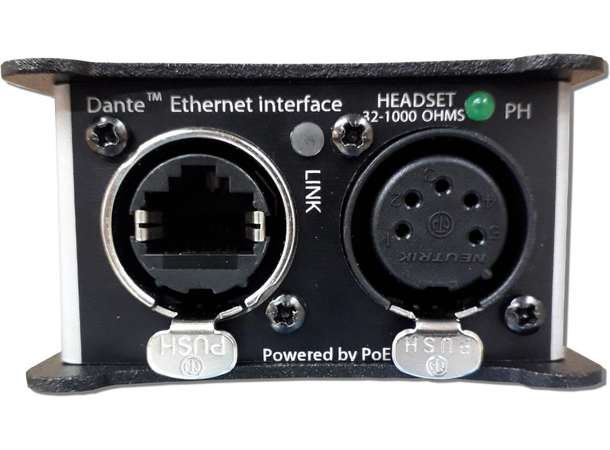

Connector type: 5 Pin XLR Socket (female XLR fitted, suitable for mating with cable mounted male)

PIN 1: Mic -
PIN 2: Mic +
PIN 3: GND
PIN 4: Headphone Left
PIN 5: Headphone Right

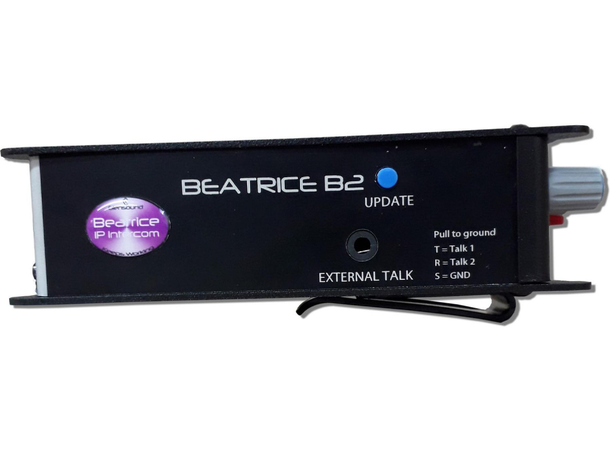

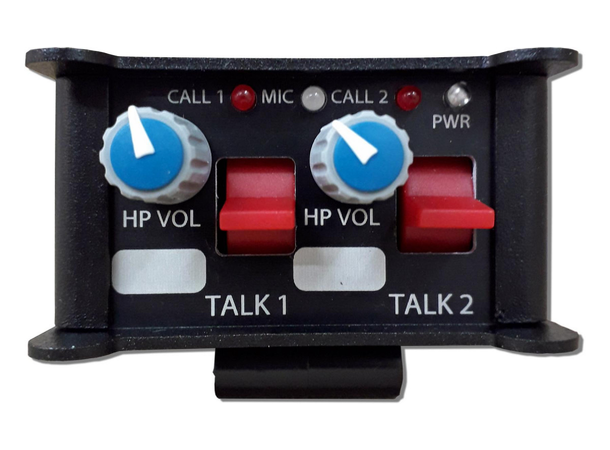

The Glensound BEATRICE B2 is an ultra compact, robust, portable two channel beltpack intercom designed for broadcast, theatre and professional audio applications.

It is part of our Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard ethernet networks. As such the BEATRICE B2 is also fully compatible with other manufacturers’ equipment using the Dante protocol. It is also AES67 compliant.

This small beltpack was designed to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.

Teknisk info

Produktinformasjon

- Grensesnitt (Protokoll) Dante
