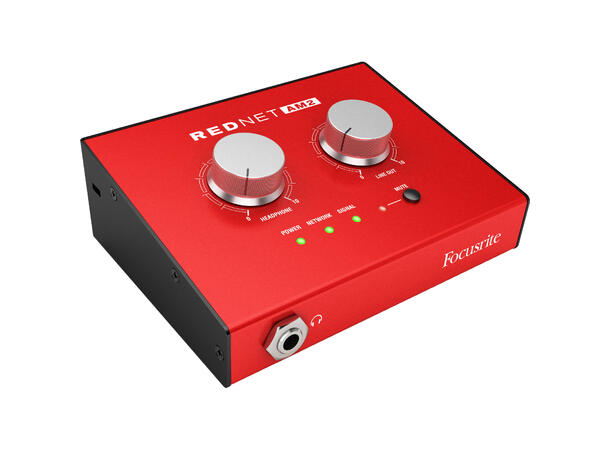

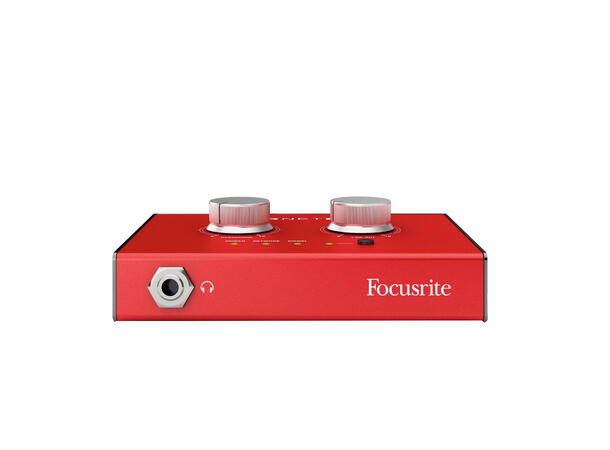

A pair of rear-panel XLR outputs offers line level signals of up to 24dBu with top panel level control and mute switch, while the front panel 1/4" headphone output is capable of driving high signal levels perfect for monitoring in high-SPL environments. The bottom of the sturdy aluminium and steel chassis features a threaded mic stand boss allowing RedNet AM2 to be placed in any convenient location whether on a desk or at a performer's fingertips on a stand. Finally, the IEEE standard PoE input allows a single Ethernet cable to provide power, remote control, clocking and audio data to RedNet AM2.

Features

• Stereo line output and headphone for Dante audio-over-IP networks
• Power-over-Ethernet supplied: IEEE 802.3af compliant
• Up to 24-bit, 96kHz sampling rates
• Robust steel and aluminium chassis
• Powerful headphone output even with high-impedance headphones
• Up to 24dBu line output levels
• Independent level control of headphone and line outputs
• Mute switch for line output
• Mic stand mount
• Kensington security slot
• Integrated network switch allowing daisy-chaining of network devices
• Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
• AES67 compliant
