Each mic pre has the option of mic, line or the front-panel instrument input, with variable input impedance to ensure you are getting the best performance from the source. Up to 60dB of gain is available on the four-position rotary and gain range switches, with a further +20dB of continuously variable trim, meaning a huge 80dB of gain is available should it be required. The high-pass filter features variable cut-off frequency between 16 and 420Hz. An array of 6-segment LED meters show peak signal level for the four mic pres, in addition to the four direct inputs to the optional A-D card. Switchable rear-panel insert points allow the use of inline processors such as compression.
Feature
- Classic ISA mic preamp design featuring Lundahl LL1538 input transformer
- Instrument and line inputs with dedicated input connectors and front-panel switch
- Switchable input impedance including classic ISA 110 setting
- Variable cut-off frequency high-pass filter

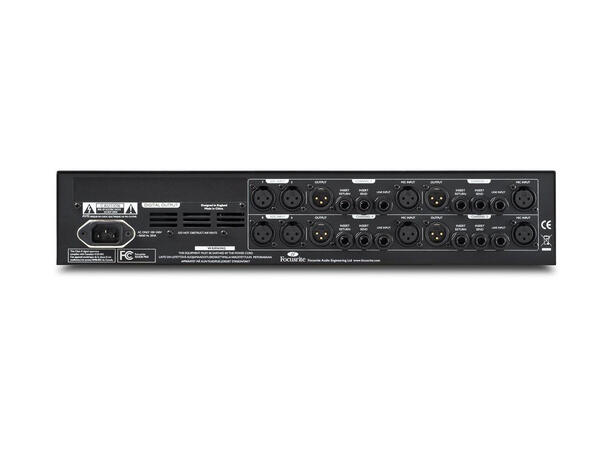

- Dedicated switchable insert point
- Per-channel six-segment LED peak-level meters

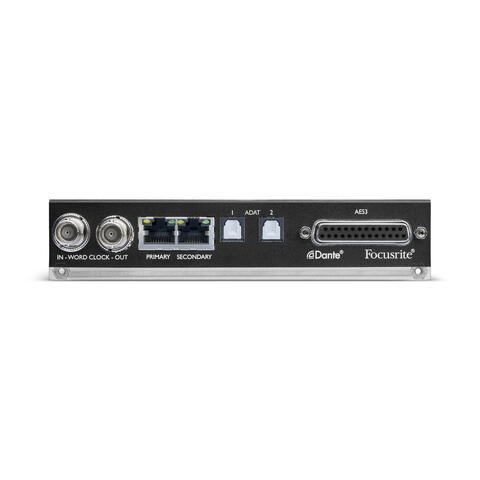

- Optional A-D card with up to 192kHz, 24-bit sampling via ADAT or AES3
- Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
