Since Red 16Line provides both DigiLink™ connectors and Thunderbolt™ connections, it's now easier than ever to switch from Pro Tools | HD™ to a second DAW, without the need to reconfigure option cards in the interface. High-performance audio conversion with over 118dB dynamic range A-D and 121dB dynamic range D-A (A-weighted). The two digitally-controlled Red Evolution mic preamps provide up to 63dB of ultra-clean gain along with stereo linking, individual phantom power, high-pass filter, phase reverse and Air mode.
Features
- Connect to Pro Tools | HD, Thunderbolt computers and Dante simultaneously without option cards
- High-performance audio conversion with over 118dB dynamic range A/D and 121dB dynamic range D/A (A-weighted)
- Ultra-low round trip latency to track through plug-ins and record virtual instruments in real time

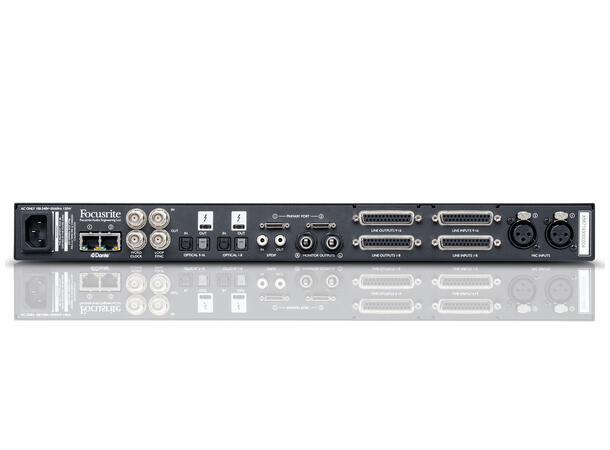

- 16 line inputs on D-sub, coupled with 16 line outputs and two main monitor outputs
- Two digitally-controlled Red Evolution mic preamps with up to 63dB of ultra-clean gain, stereo linking, individual phantom power, high-pass filter and phase reverse
- Air mode on the preamps, giving recordings the clarity of a transformer-based ISA
- Two Thunderbolt 3 ports as standard to connect additional Thunderbolt products
- Dual-port Dante card for more channels at higher sample rates

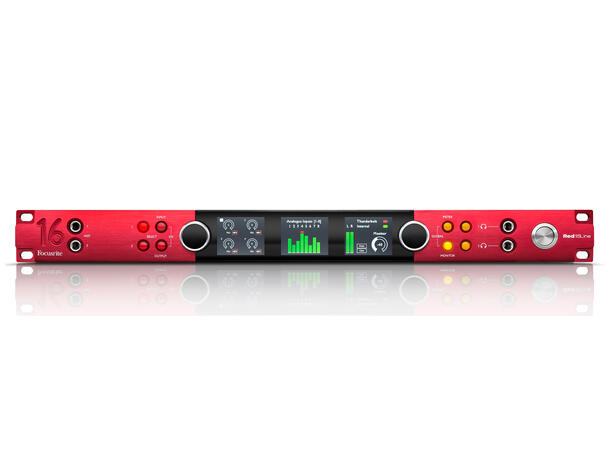

- Three LCD displays for highly accurate level metering
- RedNet Control software mixer for setting up monitoring and routing configurations, with remote control of preamps
- Two discrete high-fidelity headphone outputs
- Connect multiple digital sources using word clock I/O and loop-sync I/O
- Two instrument inputs on the front panel
- AAX/AU/VST-compatible Red 2 and Red 3 EQ and compression plug-ins
