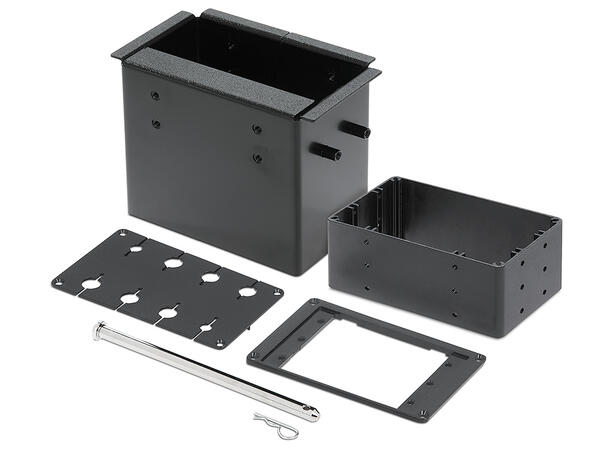

EXTRON Cable Cubby 1202
Cable Access Enclosure for AV Connectivity, Remote Control, and Power
Features
- Accommodates one AC or AC+USB power module, plus three Retractor modules, eight AV cables, or three AAP™ AV Connectivity Modules
- Slim enclosure is 2” (51 mm) shorter than previous model, making it ideal for conference tables, desks, lecterns, and other work areas where space is at a premium — The low profile is ideal for semi-permanent folding tables in modular spaces.
- Patented modular design for fast assembly and serviceability — AV connectivity can be installed or serviced from the top of the enclosure after it is installed.
- Retractor Bracket, Cable Pass-Through Bracket, and AAP Bracket included; Retractor modules, cables, and AAP modules sold separately
Retractor Bracket holds three Retractor or Retractor XL cable retraction modules
- Optional Retractor cable retraction system supports most AV and data signal types
- Connectivity Bracket supports up to three single-space AAP modules
- Cable Pass-Through Bracket supports up to eight AV cables
- AC Power and AC+USB power modules are available for US, Europe, and other major world markets
- AC+USB 200 Series power modules feature up to two AC outlets and two USB Type-A outlets
- AC+USB 300 Series power modules feature up to two AC outlets, one USB Type-C®, and one USB Type-A outlets
- Available multi-region AC outlet is compatible with a variety of AC plug types
- Cable Cubby 1202 US enclosure is UL/c-UL listed
- All Cable Cubby 1202 enclosures are CE compliant
- Compatible with Show Me® Cables — Show Me cables provide convenient connectivity and user input selection and control for Collaboration Systems.
- New US model includes an attached 9.5' power cord and two 2’ cords to power optional AV equipment and other devices
- Integrated side clamps secure enclosure to the furniture surface — Cable Cubby can be secured in place without additional parts or tools.
Low-profile lid and full-width cable pass-through for convenient access to AV and power — Integrated damper provides smooth, quiet operation.
- Top surface is available in a black anodized or brushed aluminum finish
- Installation routing template available, part #70-1041-80
- Optional Retractor Bracket allows two Retractor cable retraction modules to be mounted at the outer edges of the enclosure; sold in pairs
Optional Cable Pass-Through Bracket allows four AV cables to be mounted at the outer edges of the enclosure; sold in pairs
- Cable Cubby Builder is available at www.extron.com/cablecubbybuilder — Intuitive online tool for enclosure selection, pricing, and cable and connectivity selection.
- Dimensions: 10.57" L x 4.58" W x 4.41” D (269 mm L x 116 mm W x 112 mm D
