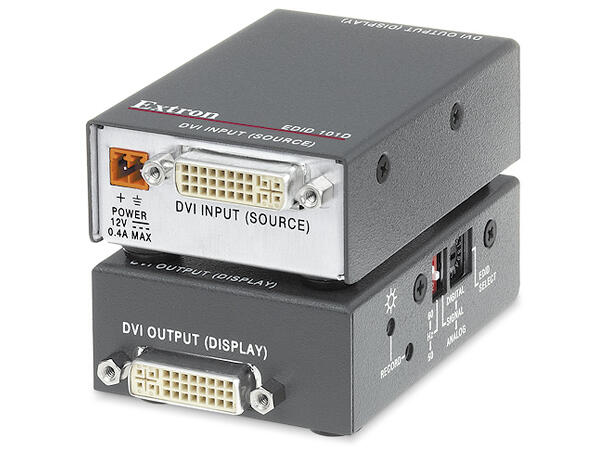

EXTRON EDID 101D

EDID Emulator with EDID Minder for DVI

Key Features

• EDID Minder® automatically manages EDID communication between connected devices
  Provides continuous EDID management with DVI sources
• Selectable resolutions and refresh rates
• EDID capture mode
• Can be powered directly from the DVI source
• 1" (2.5 cm) high, one-eighth rack width metal enclosure

The Extron EDID 101D is an EDID Emulator for single-link and dual-link DVI, and RGBHV signal sources. It features EDID Minder®, an Extron exclusive technology designed to provide automatic and continuous EDID - Extended Display Identification Data. EDID Minder ensures that the source powers up properly and reliably outputs content. Pre-stored EDID is communicated to the source based on a user-selected resolution and refresh rate. Alternatively, the EDID 101D can be set to capture and store EDID information when connected to a display. The EDID 101D can be powered directly from the DVI source or with an optional, external power supply and is housed in a compact 1” high, one-eighth rack width enclosure for convenient, discreet installation.

Specs:

• EDID 101 Series
  - NOTE: If you use a DVI-A to 15-pin HD adapter, the EDID 101D can be used for analog signal pass-through.

• Video — EDID 101D, digital signals
  - Maximum data rate: 10 Gbps (3.3 Gbps per color)
  - Maximum pixel clock: 330 MHz (165 MHz per link)
  - Resolution range: Up to 2560x1600 @ 60 Hz
  - Formats: RGB and YCbCr digital video
  - Standards: DVI 1.0, EDID 1.3

• Video input — EDID 101D, digital signals
  - Number/signal type: 1 dual or single link DVI-D
  - Connectors: 1 female DVI-I

• Video output — EDID 101D, digital signals
  - Number/signal type: 1 dual or single link DVI-D
  - Connectors: 1 female DVI-I

• Video — EDID 101D, analog signals; EDID 101V
  - Bandwidth: 350 MHz (-3 dB)
  - Gain: Unity

• Video input — EDID 101D, analog signals; EDID 101V
  - Number/signal type: 1 analog VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs
  - Connector: 1 female 15-pin HD
  - Nominal level: 0.7 Vp-p for RGB
  - Minimum/maximum levels: Analog: 0.3 V to 1.5 Vp-p with no offset
  - Impedance: 75 ohms
  - Horizontal frequency: 15 kHz to 145 kHz
  - Vertical frequency: 30 Hz to 170 Hz

• Video output — EDID 101D, analog signals; EDID 101V
  - Number/signal type: 1 analog RGBHV, RGBS, RGsB, RsGsBs (follows input)
  - Connector: 1 female 15-pin HD
  - Minimum/maximum levels: Follows input
  - Impedance: 75 ohms

• General
  - Power: Supplied by the 5 V signal from a DVI source (pin 14), a VGA* source (pin 9), or from an external power supply
    * NOTE: Some VGA source devices do not provide power output.
    * NOTE: The external power supply, Extron part number 70-775-01, is not included.
  - External power supply: 100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated
  - Power input requirements: 12 VDC, 0.05 A
  - Ambient temperature/humidity:
    • Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
    • Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
  - Cooling: Convection, no vents
  - Mounting: Rack mount (Yes, with optional 1U rack shelf)
  - Enclosure type: Metal
  - Enclosure dimensions: 1.0" H x 2.2" W x 3.0" D (2.5 cm H x 5.6 cm W x 7.6 cm D) (one-eighth rack wide)
  - Product weight: 0.4 lbs (0.2 kg)
  - Shipping weight: 2 lbs (1 kg)
  - Vibration: ISTA 1A in carton (International Safe Transit Association)
  - Regulatory compliance:
    • Safety: CE, c-UL, UL
    • EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI Class A
    • Environmental: Complies with RoHS, WEEE
  - Product warranty: 3 years parts and labor
    * NOTE: All nominal levels are at ±10%.
    * NOTE: Specifications are subject to change without notice.
