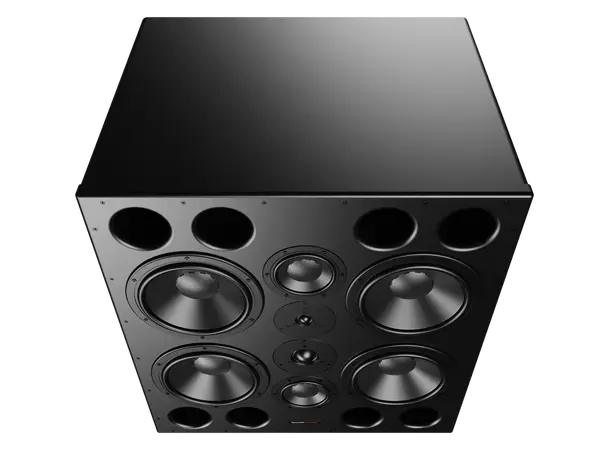

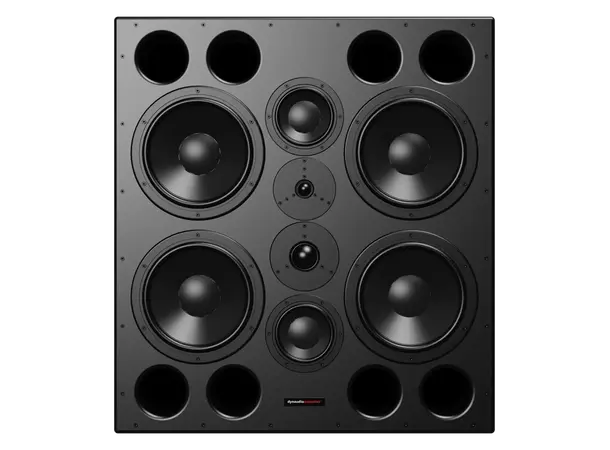

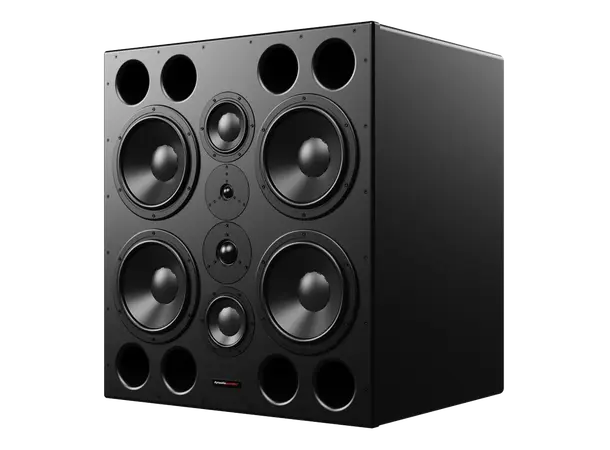

Dynaudio Acoustics M4 MkII

High-power reference monitor designed for use in large control rooms

M4 MkII

The M4 by Dynaudio Acoustics is a high quality, high-power loudspeaker system for use in large music studio monitoring applications.

It’s been designed to provide accurate, distortion-free monitoring at high power levels – maintaining exceptional quality at all times under all drive conditions.

The bass section consists of four 300mm MSP (Magnesium Silicate Polymer) drivers with 100mm ferrofluid-cooled voice coils. The low-mid section uses two 170mm MSP drivers with 75mm voice coils and neodymium magnets. The upper-midrange driver is a 54mm critically doped fabric dome Esotar model that ensures low distortion and excellent transient response. And the high-frequency unit is the legendary Esotar 3, designed to reproduce distortion-free transients of up to 1000 watts. Both Esotar units are fitted with enhanced double-magnet motors, and a high-power passive crossover links the high-mid and tweeter.

If you’ve a smaller room, you can also order a compact version of the system with two bass drivers.

SPECS

Status: Current
Segment: Pro
Series: Dynaudio Acoustics
Application: Music recording and mixing
Type: 4-way hybrid

Frequency response: 35Hz – 20kHz
Maximum SPL at 2 meters: 130dB stereo
Maximum SPL at 1 meter: [Not specified]
Crossover frequencies: 250Hz, 2kHz, 5kHz
Total harmonic distortion: 1% at 90dB
Sensitivity: [Not specified]
Impedance: [Not specified]

Driver:
Recommended amplifier power: Four channels: 500–1000W/channel per speaker

Cabinet dimensions (H x W x D): 900 x 850 x 608mm
Weight: 97 kg
Fitting: [Not specified]
Finish: Black textured paint

High frequency driver: Esotar 3
Midrange: [Not specified]
High mid driver: 56mm soft dome
Low mid driver: 2x 17cm MSP
Low frequency driver: 4x 30cm MSP

Amplifier recommendation: Dynaudio Acoustics DAA6/80 DSP, DCA800/1400

Optional hardwood cabinet: Oak, cherry, walnut, maple
Custom cabinet sizes: On request
