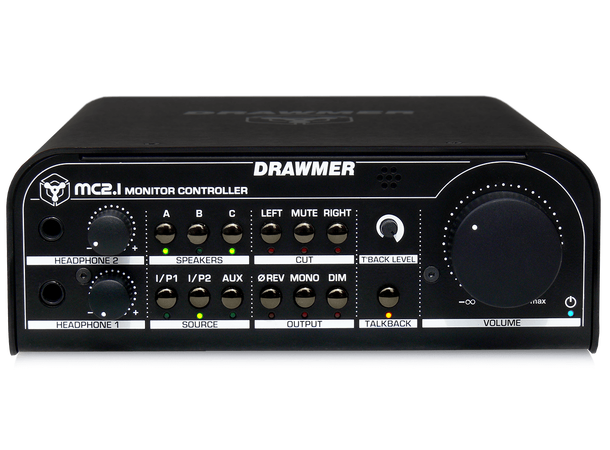

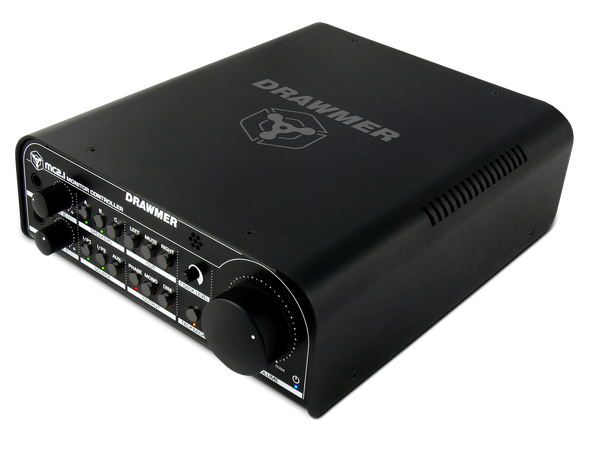

MC2.1
Monitor Controller

Accurate, Transparent & Versatile
It is imperative that what you record is exactly what you hear - this is the philosophy that is at the heart of the design of the MC2.1 Monitor Controller.

With the Drawmer MC2.1 Monitor Controller incorporated into your system you combine the clarity, fidelity and transparency of the highest quality monitoring circuit with the complexity of a host of mix checking features. It is versatile and intuitive, but above everything else, where the Drawmer MC2.1 excels is in it’s accuracy and ability to faithfully reproduce what has been recorded.

The Product that Raised the Bar for Budget Monitor Controllers

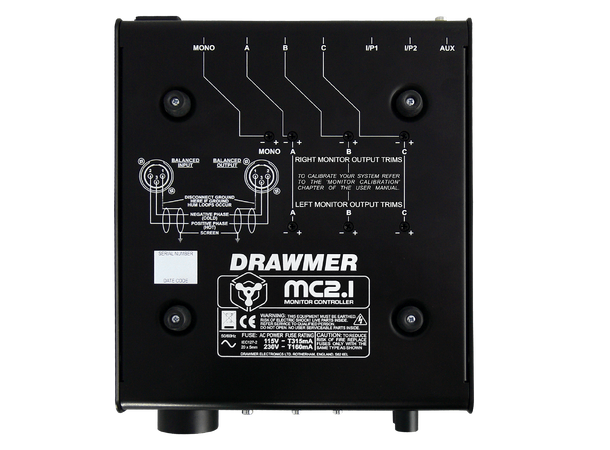

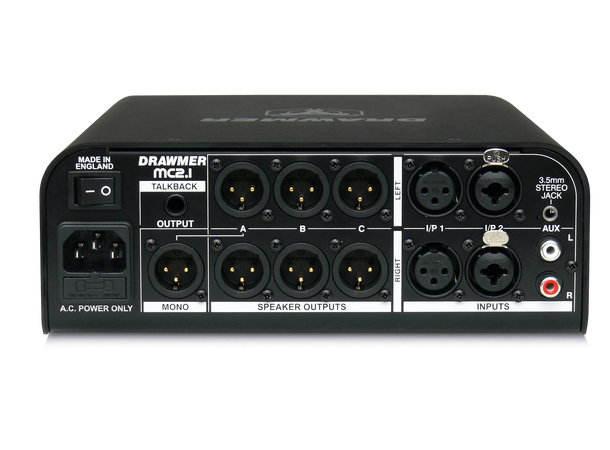

The MC2.1 incorporates four inputs with three stereo balanced speaker outputs, plus a dedicated mono speaker/sub-woofer output each with individual left/right trims under the unit to provide complete control over level matching. The active circuit has been designed to faithfully produce the audio signal whilst removing many of the problems that a passive circuit will bring. In addition, it has a host of mix checking features not often found on other controllers, such as individual left/right cut, as well as two seperate headphone amplifiers and a talkback facility, making the MC2.1 a true engineers tool.

Unerring Accuracy
Whether you’re mastering a cd/dvd, recording, checking a mix for balance and e.q, doing A/B comparisons, plus a mutlitude of other tasks, you’ll have spent weeks designing the perfect studio environment and a fortune on active speakers, dynamics processors, various preamplifier & microphone combinations as well as a whole room full other gear, one thing is for sure - a monitor controller is central to every recording setup and probably the most important element of the entire signal chain - providing the ‘reference’ listening signal that enables the user to achieve the optimal mic placements, the perfect balance and EQ etc. There is one thing that should always be absolutely guaranteed - that you can rely on the accuracy of your monitor controller.

The MCB - 2U Rack Mounting Kit (sold separatly)
The MC2.1 can be rack mount using the option rack kit. The MCB Rack Mounting Kit contains two side panels/ears, a front facia, and also a lead that brings the AUX input from the back of the MC2.1 to the front panel for easy access. Also included are the necessary screws, an assembly instruction manual and even an allen key.

Specs:

INPUT
• Maximum Input Level: 21dBu

OUTPUT
• Maximum Output Level before clipping: 26dBu

DYNAMIC RANGE
• @ unity gain: 118dB

CROSSTALK
• L/R @ 1kHz: >85dB
• Adjacent Input: >95dB

THD & NOISE
• Unity gain, 0dBu input: 0.0014%

FREQUENCY RESPONSE
• 20Hz–20kHz: ±0.2dB

PHASE RESPONSE
• 20Hz–20kHz: ±2 degrees

POWER REQUIREMENTS
• 115V or 230V at 50–60Hz, 20VA
• Voltage set by internal voltage switch

FUSE RATING
• Conforming to IEC 127-2
• @ 115V: T315mA
• @ 230V: T160mA

FUSE TYPE
• 20mm x 5mm, Class 3 Slo-Blo, 250Volt working

CASE
• Depth: 272mm
• Width: 215mm
• Height: 81mm
• Weight: 2.5kg
