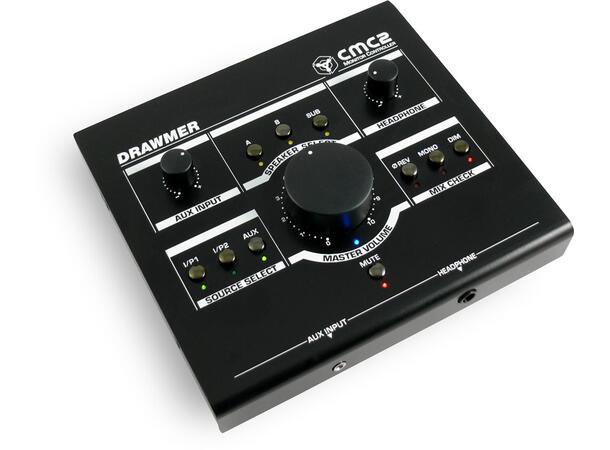

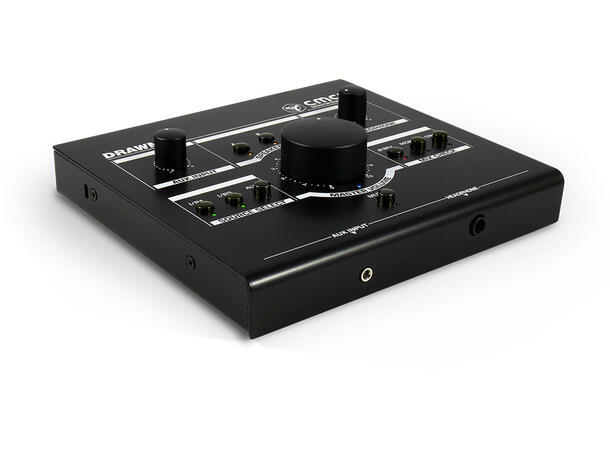

CMC2

Compact monitor controller

Compact, accurate & transparent
The CMC2 is a compact monitor controller that has been designed to provide the same top quality audio, transparency and accuracy of Drawmer's other monitor controllers, such as the MC2.1 and MC3.1, whilst retaining all the necessary features that the smaller project studio would require without the cost of the advanced features that would seldomly be used.

Can you trust the audio that your current monitor controller is providing? Is it colouring the sound? For all Drawmer monitor controllers it is imperative that what you record is exactly what you hear. The active circuit has been designed to faithfully produce the audio signal whilst removing many of the problems that a passive circuit will bring. There is one thing that should always be absolutely guaranteed - that you can rely on the accuracy of your monitor controller.

Accurate & transparent
With the same Drawmer pedigree as the MC2.1, the CMC2 circuit is just as transparent and accurate. It's switches and paralleled custom-quad knobs have excellent channel matching and a smooth feel.

Multiple Connections

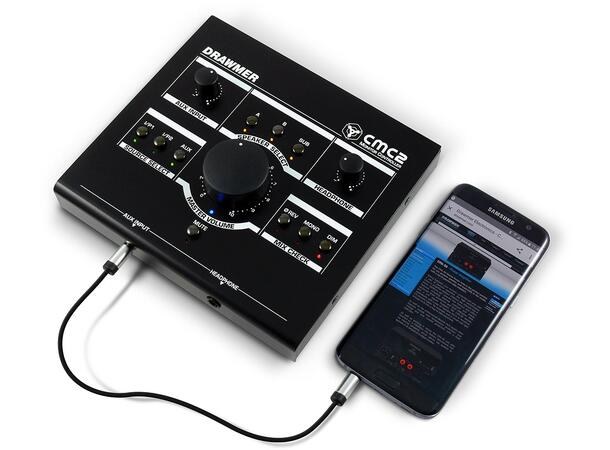

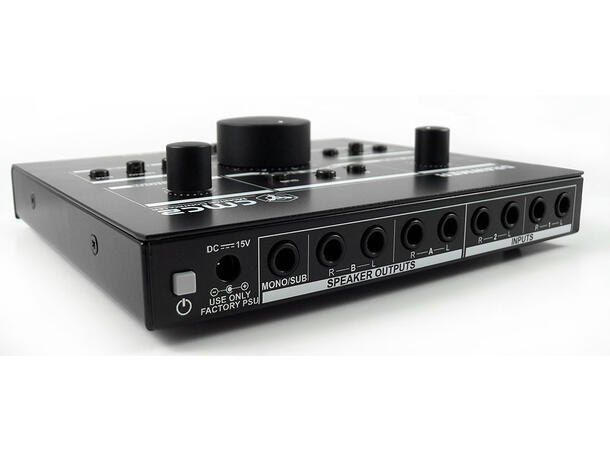

The CMC2 is very well connected: with 2 Stereo balanced jack inputs, plus a 3.5mm jack for your Smartphone/MP3 Player, with variable level control. It supports 2 sets of stereo monitors plus a sub-woofer, each with individual switches so you can activate them in any order, especially useful for A/B comparisons.

In addition, it has a professional quality headphone output with a separate amplifier and level control, that provide the same audio quality and mix checking as the CMC2 does through the speakers.

Key Mix check features such as Phase Reverse, Mono, Dim & Mute are also included, to enable you to examine the quality of your recordings with ease.

Specs:

INPUT
• Maximum Input Level: 21dBu

OUTPUT
• Maximum Output Level before clipping: 21dBu

DYNAMIC RANGE
• @ unity gain: 115dB

CROSSTALK
• L/R @ 1kHz: >80dB

THD & NOISE
• Unity gain, 0dBu input: 0.002%

FREQUENCY RESPONSE
• 20Hz–20kHz: ±0.2dB

PHASE RESPONSE
• 20Hz–20kHz: ±2 degrees

POWER REQUIREMENTS
• External Power Supply
• Input: 100–240V ~ 50–60Hz, 0.48A MAX
• Output: 15V ? 1A
• Voltage automatically selected by PSU
• EMC Standards: EN55022:2006+A1:2007 / EN6100-3-2 / EN6100-3-3
• PSU regulation: Use only the external PSU supplied by Drawmer or an accredited partner.
  Failure to do so could permanently damage the CMC2 and will also invalidate the warranty.

CASE
• Depth: 164mm
• Width: 183mm
• Height: 45mm
• Weight: 1.1kg
