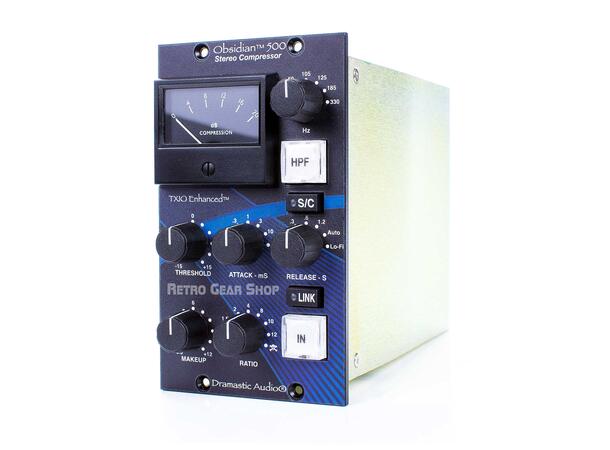

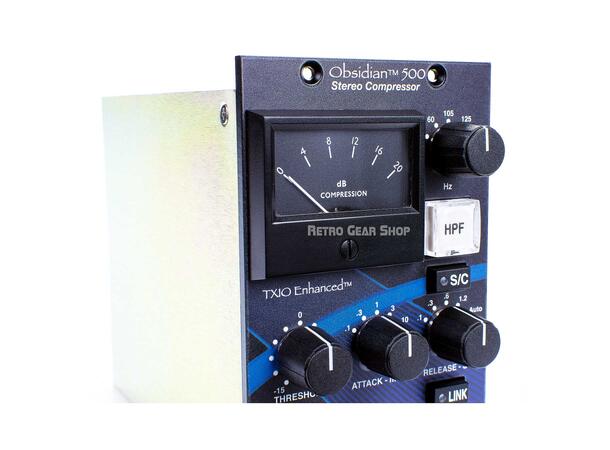

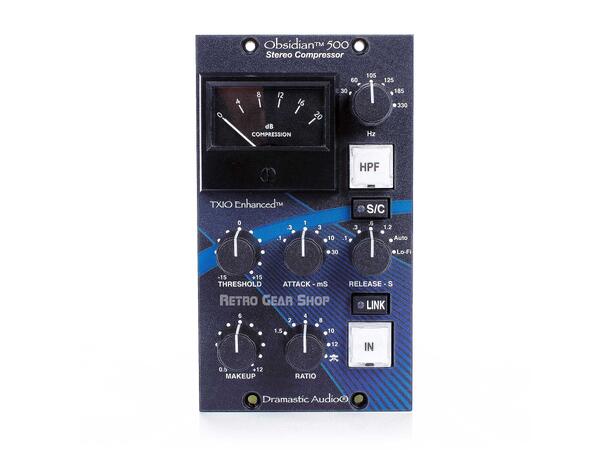

The Obsidian 500 Stereo
Dramastic Audio Obsidian er håndlaget i Arizona, USA og lager en fantastisk SSL FX G 383 “greyface”-stil analog busskompressor i både 19" rack- og 500-serieformat. Dette er ofte et førstevalg når vi ønsker den best lydende SSL-stil “glue”-kompresjonen. Anbefales sterkt for trommebusser, stems og miksing! Også flott til opptak eller vokalinnspilling.
Derived from the circuit design as the regular 19” Rack unit, but adds some flexibility with the selectable High Pass Filter. The 500 version also adds one more ratio to the party with the gentile 1.5:1 position. In addition to the release of the D/A/O 500, there will be a Dual Mono expansion module available which gives you independent metering for each channel, and the addition of the inputs to the Side Chain, which is crucial for many applications.
TXIO Enhanced™ Transformer Balanced I/O
Precision Stepped Controls To Accurately Recall Settings
VCA Feed-Forward Compression
Selectable Internal High Pass Filter
Expansion Port For Additional Features
Link Multiple Modules Together
Selectable Pad Settings
Superior Imaging
Ratio settings:
1.5:1, 2:1, 4:1, 8:1, 10:1, 12:1 and Skull
Attack control range:
0.1, 0.3, 1.0, 3.0, 10, and 30 mSec
Release control range:
0.1, 0.3, 0.6, 1.2 sec, AUTO and Lo-Fi
HPF settings:
30Hz, 60Hz, 105Hz, 125Hz, 185Hz, 330 Hz
Makeup Gain Output 12 db
