Plug-and-play solution

Compact, lightweight and portable

Rich, smooth and fully enveloping sound

Discrete 5.1 analog output – no processing needed

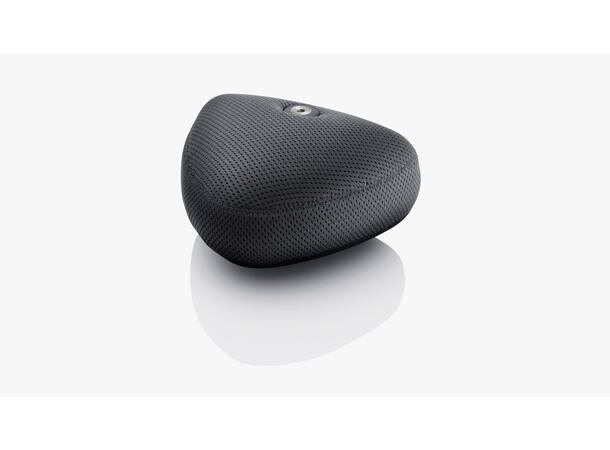

The 5100 Mobile Surround Microphone is a completely self-contained plug-and-play solution for 5.1 audio capture. It brings engaging surround ambience to sport events, documentaries and other HDTV productions. This microphone is versatile and can be mounted in many ways:, microphone stand, suspended from the ceiling or via a handgrip. It is lightweight and portable. It can also withstand inclement weather conditions due to its robust nature.

The 5100 includes:

Outdoor Cover - OC5100

Lemo Multipin to 6x XLR-M cable

The 5100 Mobile Surround Microphone uses five miniature pressure transducers. These transducers have low sensitivity to wind and mechanical noise, low distortion and low frequency response. They also have a large dynamic range.

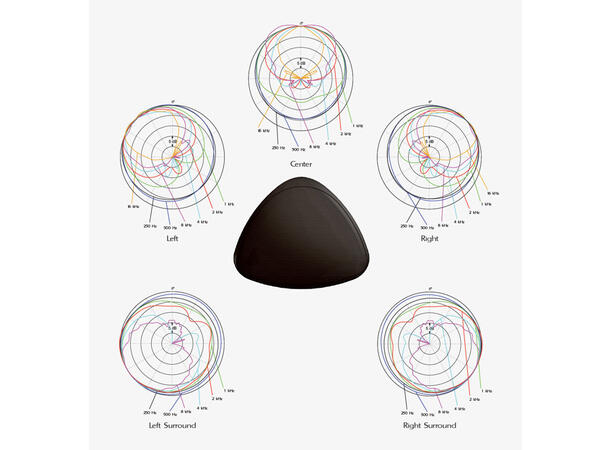

The three front microphones in this system are time aligned to eliminate comb filtering. This also ensures frequency consistency when down mixing to stereo or mono. In contrast, the rear microphones, with standard omnidirectional patterns, are optimally spaced from both each other and the front array to simulate the most natural time arrival differences. The end result of DPA’s innovative design approach is a surround atmosphere that is rich, smooth and fully enveloping, great in its coherence, channel separation and localization accuracy. The 5100 Mobile Surround Microphone requires no external signal processing.
