DiGiGrid MGO
The DiGiGrid MGO interface gives you the ability to connect any optical MADI-enabled device to Waves SoundGrid, for networking and processing. Use hundreds of Waves and third-party plugins to record, process and playback up to 128 audio channels, with super-low latency of only 0.8 milliseconds. This compact and portable MADI interface even lets you record to two computers at the same time, so you can use one for virtual soundcheck, the other for backup. Whether you’re in a hotel room, on the tour bus or between flights, you can get to work setting up your next show – on your laptop.
With a DiGiGrid MGO MADI-to-SoundGrid interface and an Ethernet cable, real-time low-latency networking and processing is at your fingertips.
KEY FEATURES
- MADI-to-SoundGrid interface
- Plug any MADI-enabled device into SoundGrid
- Record, process* and playback up to 128 channels Record to multiple computers simultaneously**
- Compliant with the SoundGrid Studio ASIO/Core Audio driver
*Real-time processing requires a DiGiGrid SoundGrid Server **Requires a network switch
TECHNICAL SPECIFICATIONS
FRONT
- 2 x LC Optical MADI I/O interfaces (MultiMode)

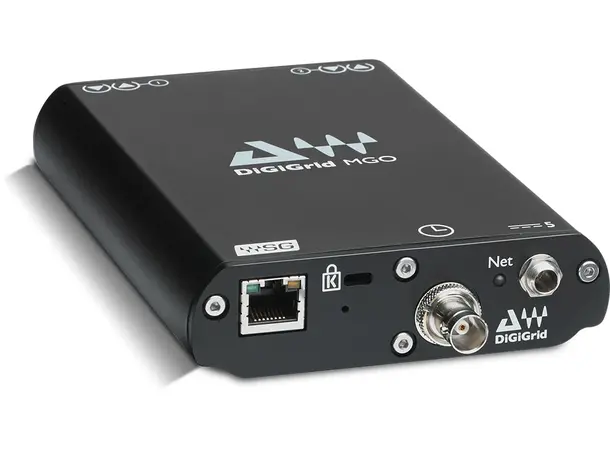

REAR
- 1 x SoundGrid RJ45 Ethernet port
- 1 x Word Clock Input (BNC)
- 1 x Screw Lock Power connector
- 1 x Kensington Security Slot
AUDIO SPECIFICATIONS
- Sample Rate: 44.1kHz / 48kHz / 88.1kHz / 96kHz
OPTIONS
- Upgrade to SingleMode Optics per optical interface
PHYSICAL
- Dimensions: 106mm (w) x 148.2mm (d) x 29mm (h)
- Weight: 0.5kg (1.5kg boxed) Power Requirements: 5V, 2A DC
