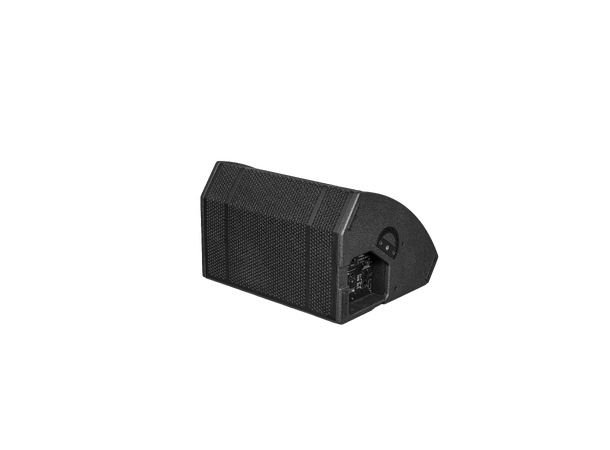

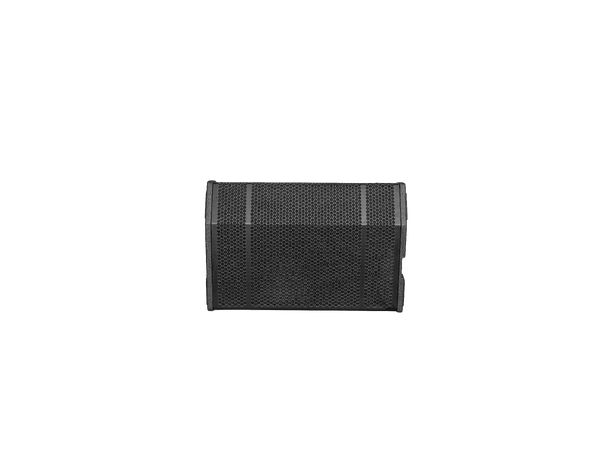

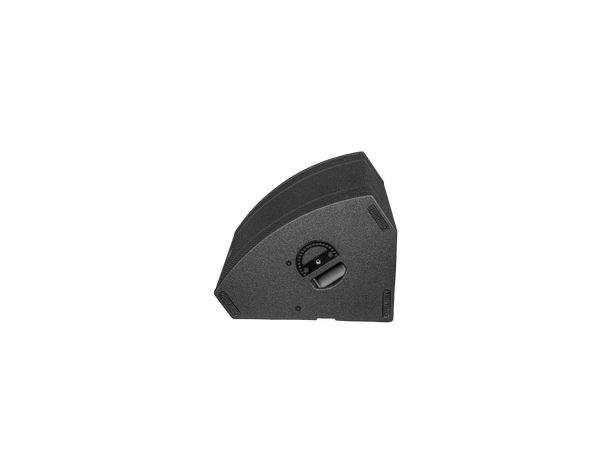

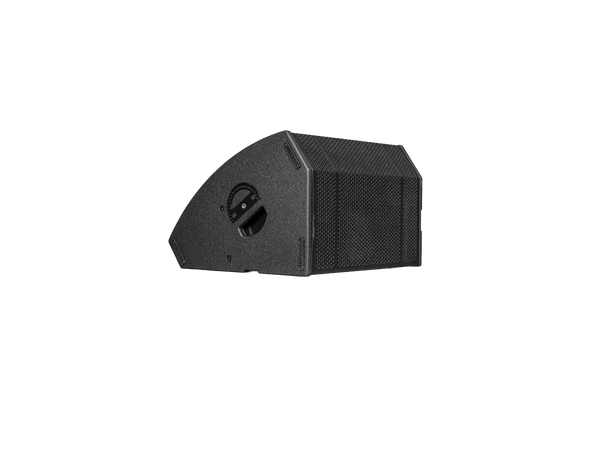

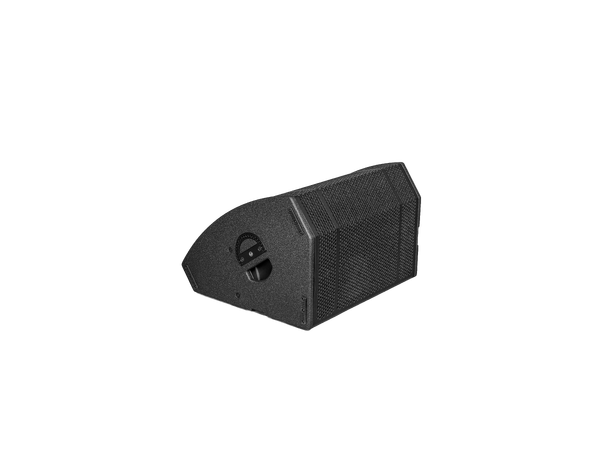

VIO W12T
- Active 2-way Coaxial Stage monitor
- 1600W RMS Class-D amplifier

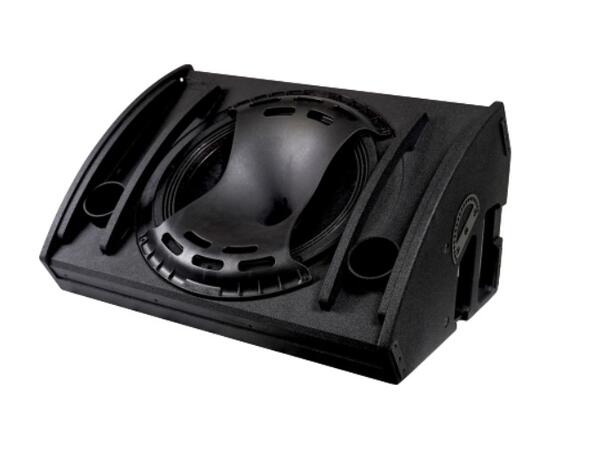

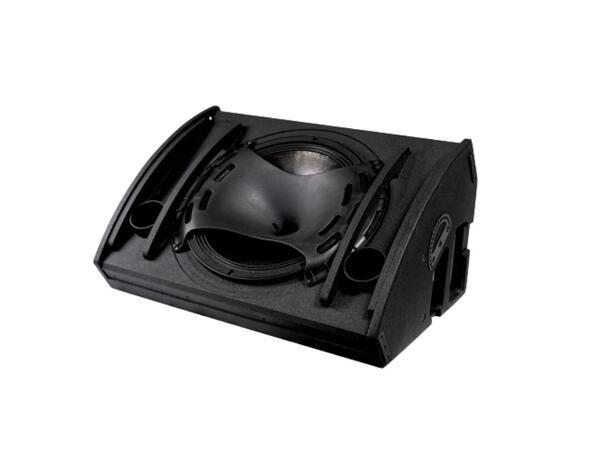

- Rotatable horn
- FULL RANGE SMPS WITH PFC
- ADVANCED DSP FEATURING LINEAR PHASE FIR FILTERS
- MODULAR SLOT FOR NETWORK AND DIGITAL AUDIO EXPANSION CARDS (RDNET CARD INSTALLED)
- NFC™ + FRONT LED IDENTIFICATION SYSTEM
- SYSTEM TEST FOR QUICK TRANSDUCERS DIAGNOSTICS

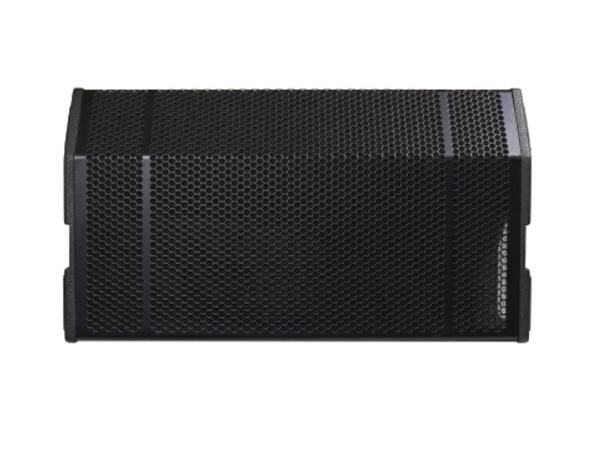

- Exclusive front-rear grille design

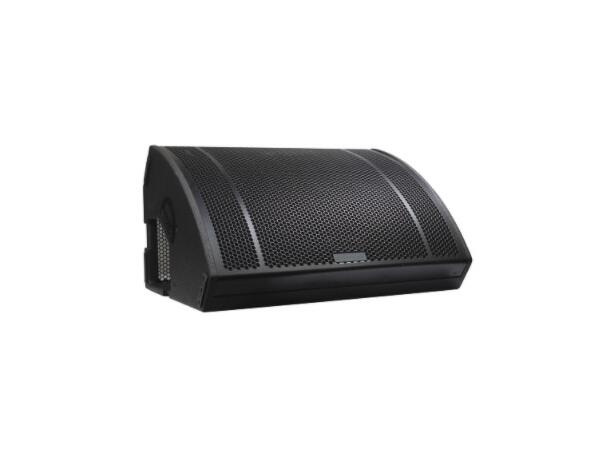

VIO W12T is a compact, high-output 12” active coaxial monitor designed to meet the needs of most demanding stages. Delivering 137 dB SPL, the system combines precise 60° × 40° rotatable horn dispersion, excellent phase-coherence, and a flexible mechanical design. Whether deployed as a wedge, pole-mounted, flown, or installed, the W12T adapts seamlessly to a wide range of professional applications—from high-SPL floor monitoring to fills and distributed systems. Powered by a 1600W RMS Class-D amplifier and dBTechnologies’ Digipro G4 platform, the W12T integrates 96 kHz DSP with FIR filters, real-time impedance monitoring, and remote control via RDNet. Optional A2Net or Dante® cards expand integration into complex digital networks. Designed for rugged professional use, its low-profile, polyurea-coated wood enclosure supports multiple mounting options. With the optional U-bracket, it can be mounted on wall stands. It can be flown using the M10 rigging points for small installs. Pole mount accessory SA-WT for VIO W-series monitors is also compatible with the new W12T. With outstanding SPL, consistent voicing, and advanced control, the VIO W12T is the multi-tool every sound company needs in their system.
Technical Data
Speaker Type2-Way Active Coaxial Stage MonitorAcoustical data
Usable Bandwith [- 10 dB] 56 - 20.000Hz
Frequency Response [- 6 dB] 60 - 16.700 Hz
Max SPL137dB
HF1x 1.3" - 3" v.c. Neodymium
LF1x 12" - 3" v.c. Neodymium
Horizontal Directivity 60°
Vertical Directivity 40°
Amplifier
Amplifier1600 W RMS Class D Digipro® G4
CoolingConvection + internal fan
Power SupplyFull-range SMPS with PFC (100V~-240V~, 50-60Hz)
Processor
Controller DSP 32 bit
Converter AD/DA24 bit/96 kHz
Limiter Dual Active Peak, RMS, Thermal
Processing (filters) Linear Phase FIR Filters

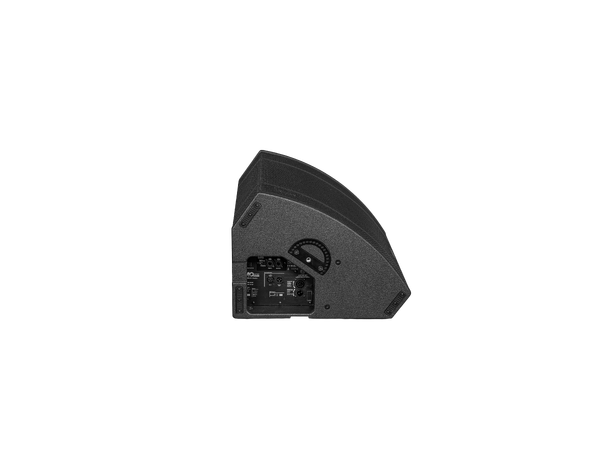

InputSignal Input1x XLR female, 1 x USB (Data Service)
Signal Output 1x XLR male
Expansion Card RDNet Card (1x RJ45 IN 1x RJ45 Link)
Dante Card [Optional]
Power Socket1x PowerCON TRUE1 In
1xPowerCON TRUE1 OutControls1x switch Flat - service/user
1x switch System test
1x led ON
1x led STATUS
1x led SIGNAL
1x led LIMITER
1x LED TEST
1x frontal ID led
Special FeaturesFrontal LED Identification System
380V Resistant SMPS
Opto-isolated floating pre-amp
System Test (transducers diagnostics)
Mechanics Housing:
Wooden cabinet, Polyurea painting
Handles 1 + 2 recessions per side
Width 550 mm (25.59 in)
Height 360 mm (14.17 in)
Depth 490 mm (19.29 in)
Weight 22,5 kg (63.9 lbs)
