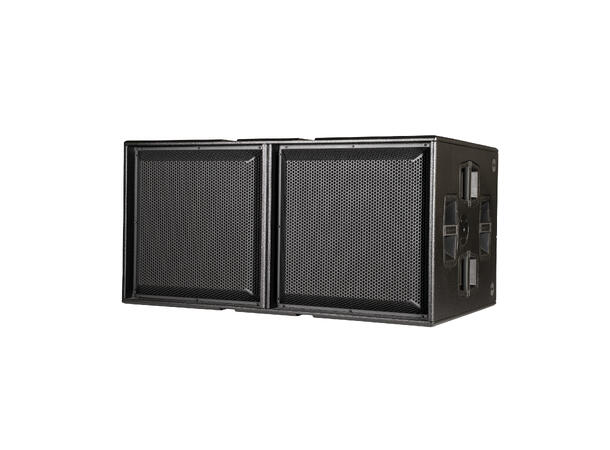

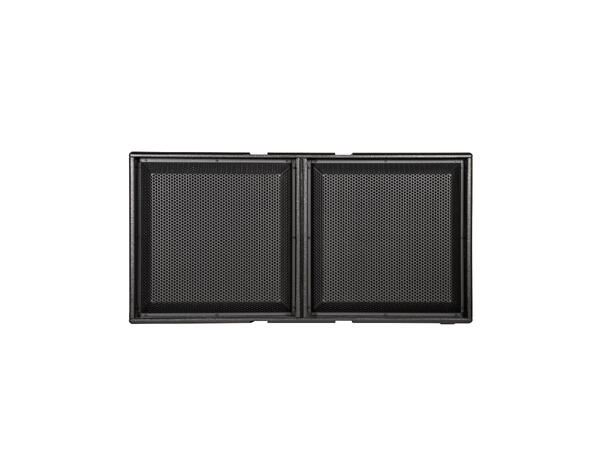

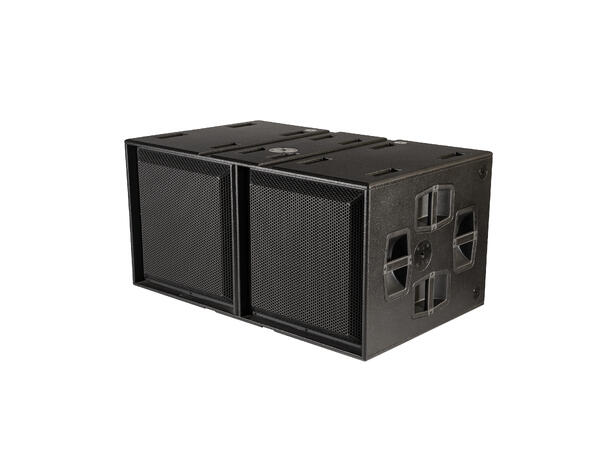

IGS2 features two 18" neodymium woofers in a solid bass-reflex cabinet. The powerful Class D DSP-controlled double amplifier section can handle up to 3200 W (RMS power), ensuring maximum reliability and full-bodied sound pressure.
The system is enabled via RDNet to complete real-time monitoring and control using Aurora Net software (available for Windows and Mac), which supports advanced configurations between IGS1 and perfect matching with dBTechnologies full-range systems.

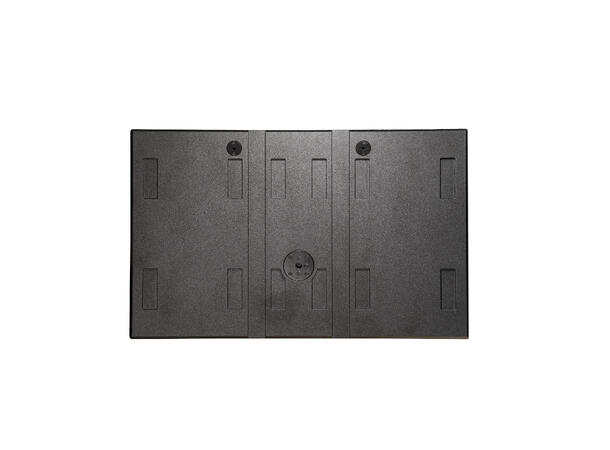

The mechanical design allows perfect scalability between this line's subwoofer models, while two M20 threaded for standard poles make matching with the top easy and immediate; four pick points allow using fly-bars dedicated to other dBTechnologies top systems for live installations.

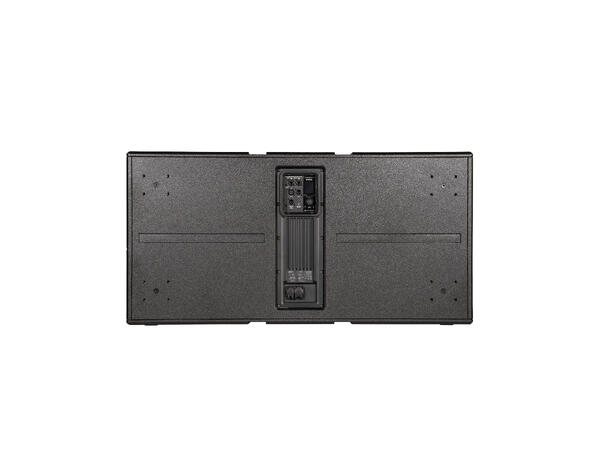

This sturdy cabinet also features four built-in handles and a back panel for easy wheeled transport. A polyurea finish complements the standard features, ensuring durability and endurance.

Technical Data
Speaker Type: Active Subwoofer

Acoustical data
Frequency Response [-10dB]: 36Hz to Xover
Max SPL (1 m): 142 dB
LF: 2x 18"
LF: Voice Coil4"

Amplifier
Amp ClassClass D with PFC
RMS Power: 2x 1600 W
Peak Power: 2x 3200 W

Processor
Controller: 32bit processing
AD/DA Converter: 24bit 96kHz
Limiter: Peak, Thermal, RMS
Crossover Frequency: 60-65-70-75-80-90-100-110-120-400 [Hz]
Controls: Function Control (rotary)

Input
Signal Input/Output1x XLR In/Out
1x PowerCon True In/Out
2x Ethercon In/Out

Mechanics
Housing: Plywood cabinet with Polyurea finish

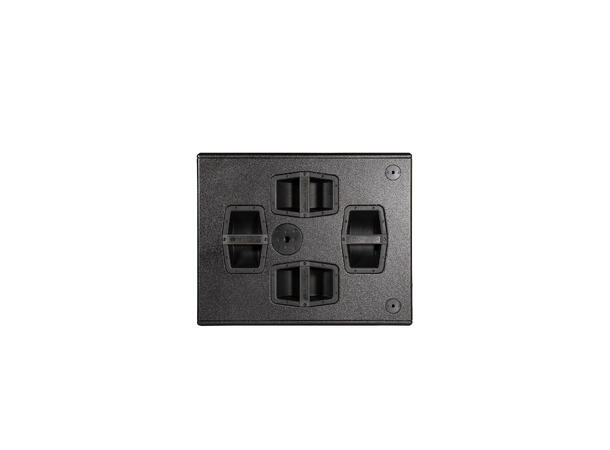

Handles: 4x side
Pole Mount: 2x M20 (1 on top and 1 on side)
Rigging Points: 4x Pick Points on top to fix DRK 10/20 rigging frames
Width: 1160 mm (45.67 in)
Height: 580 mm (22.83 in)
Depth: 720 mm (28.35 in)
Weight: 80.8 Kg (178 lbs)
