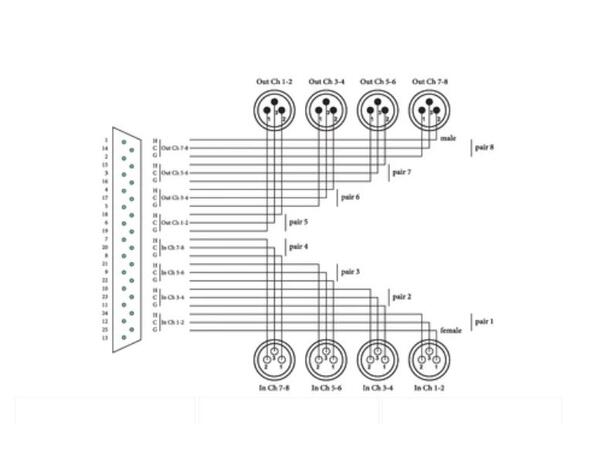

A professional digital multicore cable (AES/EBU) for LIVE and studio use. The pin configuration complies with the analog Tascam D-Sub  25 specification (DA 88), i.e. D-Sub  25 pin connector male to 4 XLR male/4 XLR female. The XLR connectors have a 3-pin configuration and a nickel-plated metal housing.

The corresponding bulk cable is the CMD 8, which transmits analog as well as DMX signals excellently and features a spiral wound tinned copper pair screen and an additional tinned overall shield.

Plugs:
1x D-Sub
4x XLR male 3 pin
4x XLR female 3 pin
