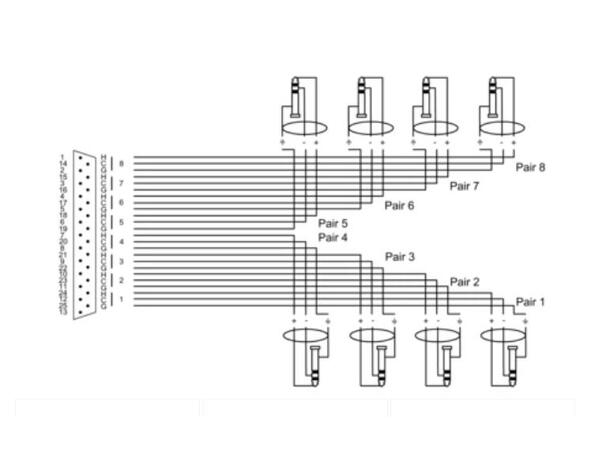

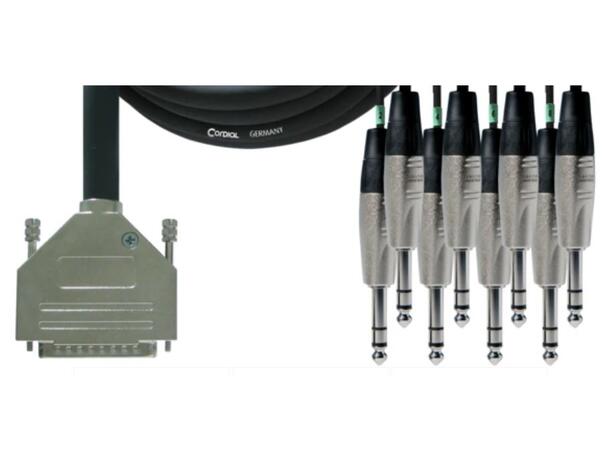

The digital interface CFD DVT is used for the balanced signal transmission from D-Sub to plug. Its pin configuration conforms with the analog Tascam DSUB  25 specifications (DA 88). The D-Sub 25-pin male connectors features a metal housing, the 8x 6.3mm plugs (balanced) are encased in nickel-plated metal housings.

The corresponding bulk cable CMD 8 features spiral wound tinned copper pair screens, an additional tinned overall shield and allows the perfect transmission of analog and DMX signals.

Plugs:

1x D-Sub

8x 1/4" Plug stereo
