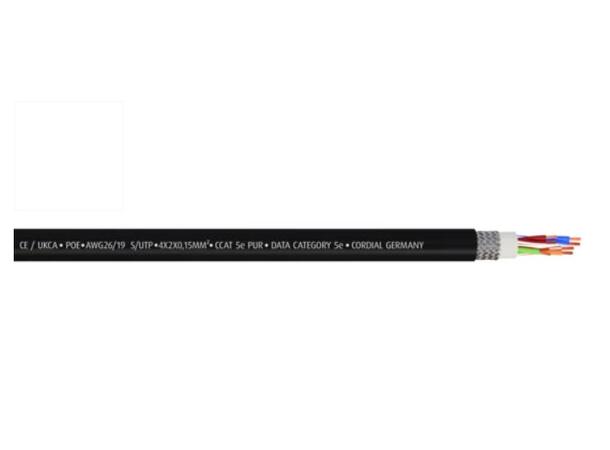

DATA / ETHERNET CAT 5e S/UTP - AWG 26/19 - PUROur CCAT 5e PUR data and network cable is equipped with a flexible AWG 26/19 inner conductor and a special TPE-V stabilizer and ideal for the use with audio networks, lighting control and EtherSound™ systems.
This cable does not only excel because it is reelable and exceptionally robust but because it also offers high flexibility and a tight bending radius. It is the ideal choice for patch cables, device connection cables as well as mobile applications, stage operations and outdoor transmissions. The cable supports the PoE IEEE 802.3af-2003 standard (15.4W).
- Highly flexible, robust, reelable,
- PUR jacket for mobile indoor/outdoor applications
- Data class CAT 5e (100 MHz)
- Overall shield S/UTP
- AWG 26/19, with 19 strands/conductors
- PoE (15.4W) IEEE 802.3af-2003 max. channel PoE (15.4W) 67 m
| |
| Conductor area | 0.15 mm² |
| AWG | 26/19 |
| Shielding | S/UTP |
| Material | PUR |
| Conductor isolation | Solid PE nom. 1,03 mm |
| Conductor resistance | 140 O/km |
| Capacity cond.-cond. (pF/m) | nom < 50 pF/m |
| Category | Data / Ethernet |
| Overall diameter | 6.5mm +/- 0.2mm |
| weight bulk cable | ca. 56kg/km |
| PoE | PoE (15,4W) IEEE 802.3af-2003 max. Channel PoE (15,4W) 67 m |
| Max. Channel-Link: | Channel of Class D / CAT 5e (@ 100 MHz): 73m |
| Max. Permanent-Link: | Permanent of Class D / CAT 5e (@ 100 MHz): 61m |
