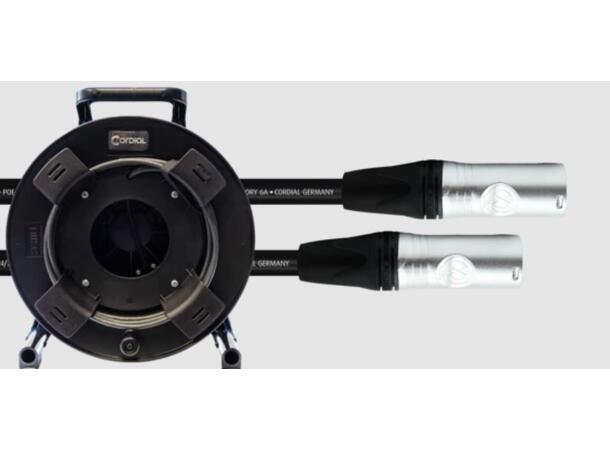

CSE NN-SD 6A PUR LONGRUN cable drum features CCAT 6A PUR LONGRUN bulk cable and NEUTRIK® etherCON® CAT6A connectors as well as the extremely robust SCHILL® cable drum (GT310 or GT380).
The CCAT 6A PUR LONGRUN is the ideal choice for demanding data transmissions over longer distances of up to 100 meters.

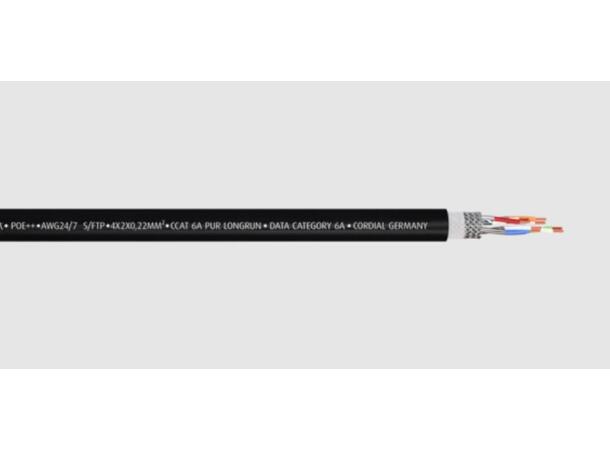

With a bandwidth of 500 MHz (Class EA CAT 6A), this cable allows maximum performance. Due to its S/FTP double shielding and the flexible AWG 24/7 inner conductor, wrapped in a robust PUR jacket, it is the perfect companion for demanding stage use.
Our CCAT 6A PUR LONGRUN cable supports Power over Ethernet (PoE++) with an output of up to 99.9 watts.
It is ideal for audio networks, lighting control, EtherSound™ and mobile applications on stages as well as for outdoor transmissions. In spite of its robustness, the cable remains flexible and can be wound onto reels.
- Flexible, robust, reelable
- PUR jacket for mobile indoor/outdoor applications
- Data class CAT 6A (500 MHz)
- Overall shield S/FTP
- AWG 24/7, with 7 strands/conductors
- PoE++ complying with IEEE 802.3af-2018 (99.9W) standards
- max. channel PoE (99.9W) 87 m
- NEUTRIK® etherCON® connector
- SCHILL® cable drum (GT310 for up to 50 m, GT380 for more than 50 m)
- Transparent shrink-on tube for easy cable identification
| Conductor area | 0.22 mm² |
| AWG | 24/7 |
| Composition of conductor | 7 x 0,22 mm² |
| Material | PUR |
| Conductor isolation | Foam-Skin PE nom. 1,4 mm |
| Shielding | S/FTP |
| Overall Jacket | PUR |
| Category | Data / Ethernet |
| Overall diameter | 7,9 mm +/- 0.3mm |
| Weight bulk cable | ca. 71kg/km |
| Capacity cond.-cond. (pF/m) | nom < 50 pF/m |
| Conductor resistance | 84 O/km |
| PoE | PoE++ (99,9W) IEEE 802.3bt-2018 PoE++ (99,9W) max. Channel PoE (99,9W) 87 m |
| Max. Channel-Link: | Channel of Class EA / CAT 6A (@ 500 MHz): 103m |
| Max. Permanent-Link: | Permanent of Class EA / CAT 6A (@ 500 MHz): 93m |
