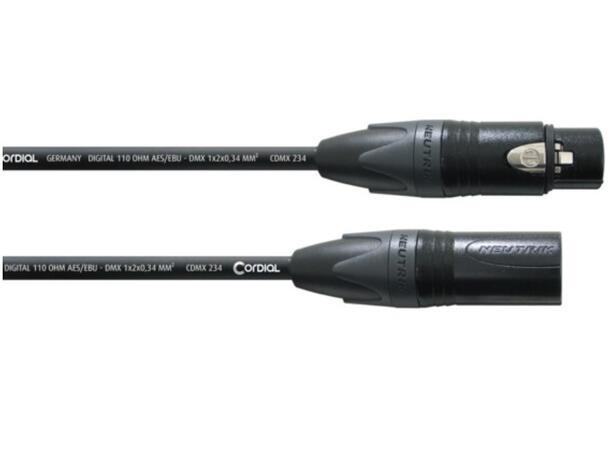

Cordial høykvalitets 110 ohms kabel.
Bruksområder:
AES/EBU
DMX
Teknisk:

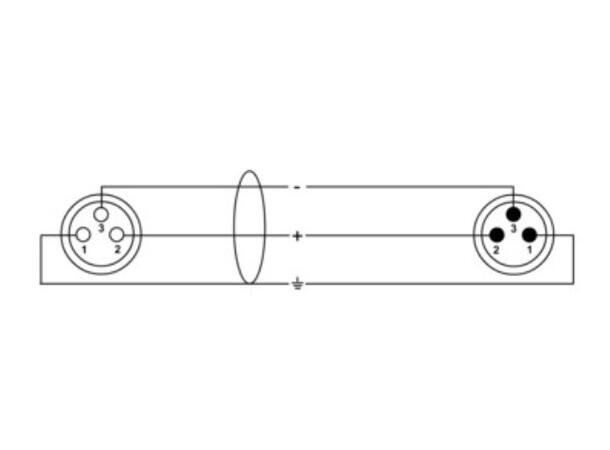

Neutrik 3-pin med svart plugg
Kabel kvadrat: 2x 0.34 mm²

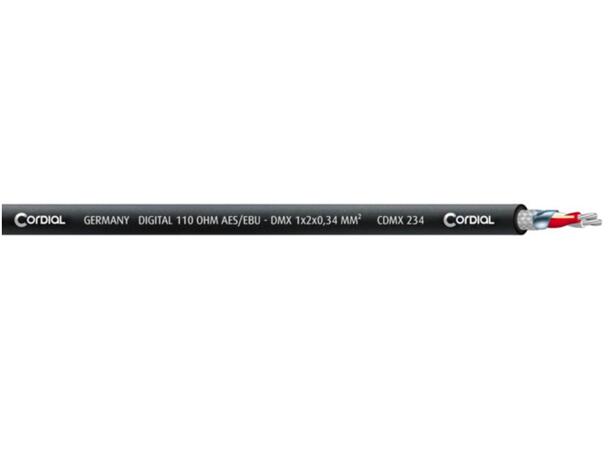

Mechanical data
| Conductor area |
0,34 mm² |
| Composition of conductor |
7 x 0,25 mm tinned copper |
| Conductor isolation |
PE |
| Composition of cores |
1 twisted pair |
| Overall Screen |
tinned copper braided screen |
| Screen / Pair screen |
aluminium laminated foil |
| Overall jacket |
PVC |
| Overall diameter |
6,0 ± 0,2 mm |
| Weight |
50 g/m |
| Working temperature |
|
| mobile |
(-5 °C) - (+70 °C) |
| fixed |
(-20 °C) - (+70 °C) |
| min.Bending radius |
|
| mobile |
~ 60 mm |
| fixed |
~ 30 mm |
