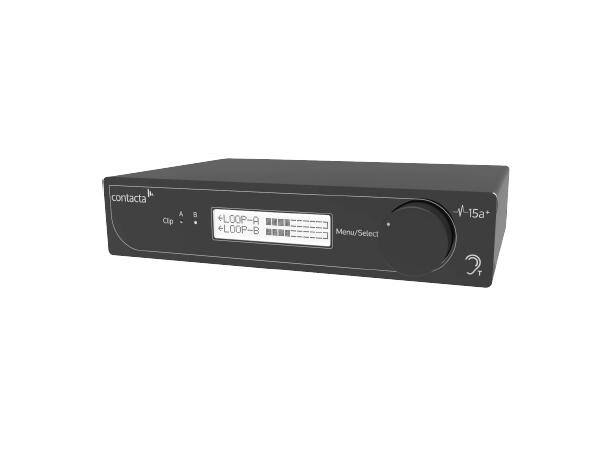

Our highly efficient and compact V15a+ is a constant current, dual output hearing loop driver, with integral phase shifter for phased array configuration. The V15a+ is suitable for small and medium sized facilities and venues. It has Class-D amplifier output stages and an audio subsystem built around an advanced DSP core. Combined with a powerful CPU to ensure peak performance, the V15a+ uses cutting edge technology proven in the pro audio world to achieve life-like speech and first-class music reproduction

Features

• DSP controlled automatic gain control and high frequency compensation for metal loss

• 2 X 90° phase shifted (DSP controlled) Class-D amplifier output stages capable of delivering 5ARMS @ >15VRMS

• Ultra-efficient power utilisation (up to 90% efficient)

• High Pass Filter • Audio time delay

• Switchable AGC (Automatic Gain control)

• Enhanced Loop Diagnostics

• True constant current output stage

• Simple user interface

• Backlit LCD display

• Sleep mode

• Continuous self-testing

• Integrated protection circuits with temperature, voltage, short circuit and DC detection

• Compact half-width 1U chassis (compatible 6U Rack Cabinet available upon request)
