Bolin KBD-1020N PTZ Camera Controller

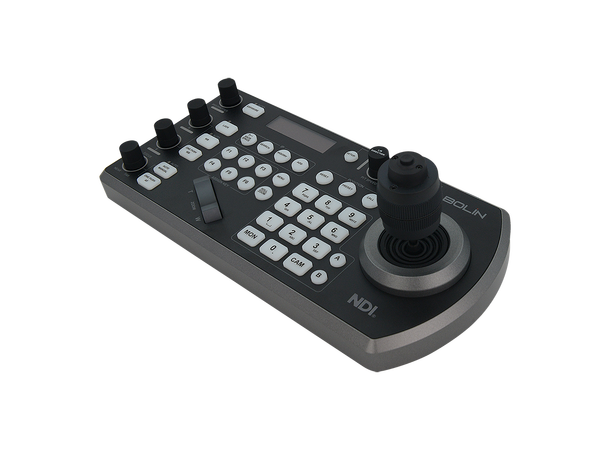

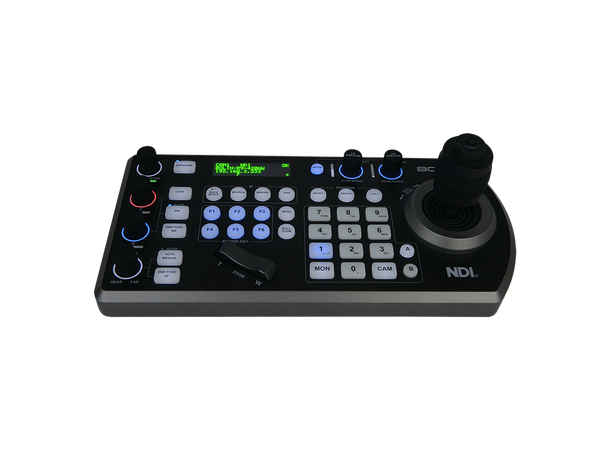

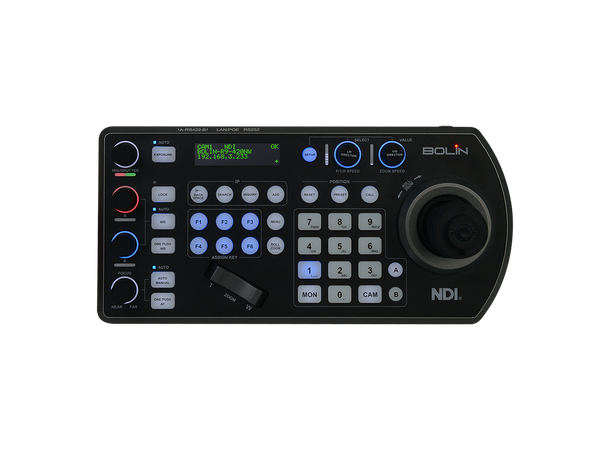

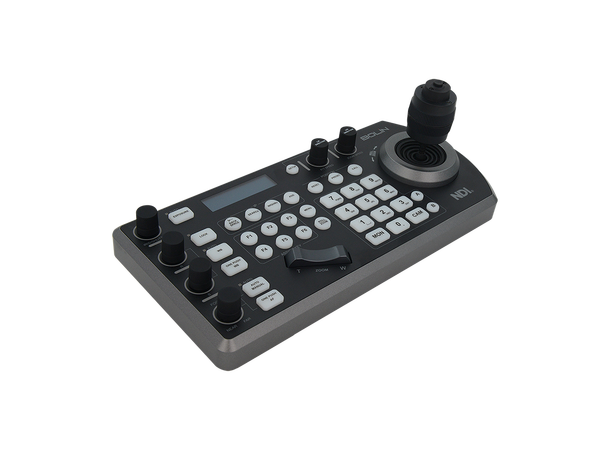

Newly upgraded Bolin’s KBD-1020N NDI PTZ Controller is ergonomically designed to make critical PTZ camera functions easy to find and use. Details like dedicated knobs for PTZ variable speed control and for fine control over iris/shutter, red and blue adjustment, and focus, with auto/manual toggle. It has illuminated push buttons for camera selection and a three-axis joystick for smooth, precise camera movements.

The KBD-1020N is a universal NDI PTZ controller capable of camera discovery and transmitting serial and IP network control commands including  serial Pelco P/D and VISCA as well as IP control protocols like  VISCA over IP, ONVIF and NDI simultaneously within the same network.

The power, flexibility, and intuitive, precise camera controls of the KBD-1020N make it an ideal partner for multiple PTZ camera setups in live NDI production environments such as broadcast studios, education and video conferencing spaces, concerts, and Houses of Worship.

PTZ Control in NDI Network and More

• NDI certified, full functional NDI PTZ camera controller
• Serial RS232/422/485 control and IP network control.
• Cross Protocol Mix-control, Visca, Visca-Over-IP, Pelco P/D, Onvif IP, and NDI control.
• Supports any brand of Visca Over IP cameras in one system.

Roll-Axis Control

• Works with SD530, and EX1030 series Bolin Outdoor  PTZ Cameras
• Roll-Axis Adjustment with using Seesaw
• 1-15° horizontal adjustment capability allows to image to be leveled with the horizon and/or subject, or to capture unique angle

Improved, More Functional Web Interface

• Search for cameras on the network, assign camera numbers, name cameras
• Joystick Calibration
• Assign Function Keys
• Support for 255 VISCA Steps (Select Bolin Cameras)
• Import/Export Configurations

Joystick Calibration by user

• Designed to calibrate the keyboard for accurate key input recognition.
• Ensure consistent and precise control with the  joystick calibration feature, allowing users to easily correct drift or accuracy issues for reliable PTZ operation

SPECS

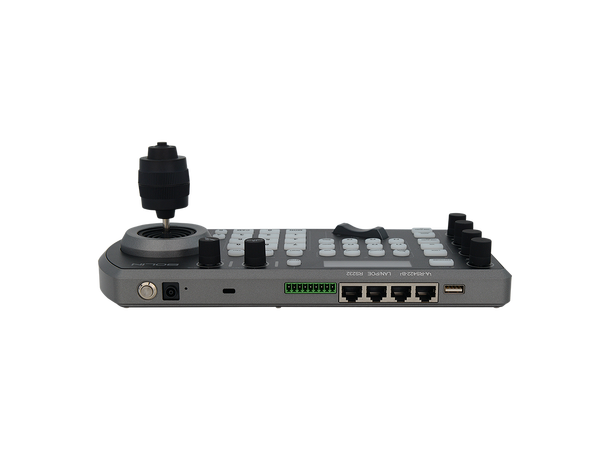

• Control Input/Output - RS232: RJ45 x1 RS422: RJ45 x2; LAN: RJ-45 x 1, 10BASE-T/100BASE-TX automatically detected. Tally In/Contact Out*: 9pin x1; USB2.0*: Type A x1 (For Firmware Upgrade Only)
• Control Signal Format - Baud Rate: 2400/4800/9600/19200/38400 (For RS232?RS422) VISCA over IP communication
• Power Connector - JEITA type 4 (12VDC), RJ45x1 for POE (IEEE 802.3af), RJ45x3 for Power Over Control
• Firmware Upgrade - USB2.0: Type A x1, for FW Upgrade Only
• Joystick - 3-Way, Pan/Tilt/Zoom, Joystick Calibration by user
• Display - LED Screen, LED Color Green
• Speed Control- Yes, 2 Knobs (Pan/Tilt, Zoom)
• Zoom Seesaw Lever - Yes, Zoom/Roll-Axis
• Zoom Ring of Joystick - Yes
• ASSIGN Button - Yes, 6
• 3-Way Simultaneously Control - Yes, Pan+Tilt+Zoom
• Web Interface - Camera discovery on the network, assign camera numbers & names, Joystick Calibration, Assign Function Keys, Import/Export Configurations
• Maximum Camera Control - Allow to control up to total 255 cameras with combining multiple protocols use in a single system.
• Maximum IP Connections - Onvif Only: 255; CGI: TBD, Onvif/VISCA Over IP Only: 255
• Maximum Serial Connections - RS232: 7(VISCA), RS422: 2x7 (VISCA), RS485:255(Pelco P/D)
• Control Protocol - Pelco P/D over RS485, Visca over RS232/RS422, Onvif, VISCA over IP, NDI
• Max Controller Qty/System - 255 via IP control
• Key/Button Illumination - Yes, multi-color LED indicators
• Third-Party Device Support - Black Magic SDI router/switch, Control type: RS422, Control Method: Camera switching with PTZ control
• Configuration File - Web software configuration, File of PTZ camera configuration and keyboard setting Export/Import via IP
• Exposure Model Selection - Yes, Button + Knob, Full Auto, Iris Priority, Shutter Priority, Manual Iris Gain, Manual Shutter Gain, Black Level.
• OPW Auto Adjustment - Yes, Button
• Roll/Zoom - Switch the Seesaw functionality between Rolling control and Zoom control
• Display the Status of WB,Iris,Gain,Shutter,Focus - Yes
• WB Model Selection - Yes, Button
• R,B Gain Adjustment - Yes, Knob
• Iris Value Adjustment - Yes, Knob
• Shutter Speed Adjustment - Yes, Knob
• Focus Model Selection - Yes, Button
• One-Push Auto Focus - Yes, Button
• Manual Focus - Yes, Knob
•  Power/Input & Voltage - Independent power input 12VDC voltage tolerance 5V~48V, POE(IP), Power using RS422/232 port via Junction Box included.
• Current Consumption - 5W
• Operation Temperature 0°C~40°C,(32°F to 104°F )
• Storage Temperature -20°C~60°C,(-4°F to 140°F )
• Dimensions - 278 mm x 132 mm x 99.5 mm (Without Base Bracket)
• Weight - 1kg
• Supplied accessories Power Adapter and power core (110VAC~220VAC to 12VDC/2A) x1, Junction Box and Control Cable x 1, Magnetic Base Bracket x1, Tally Phoenix connectorX1
• Optional accessories RJ45 Adapter for RS232 + RJ45 Coupler, RJ45 Adapter for RS422 + RJ45 Coupler
• Notes A Available functions/specifications depend on camera specification, B Functions may differ based on different version of the firmware, C * USB2.0 for firmware upgrade only.
