Technical data:

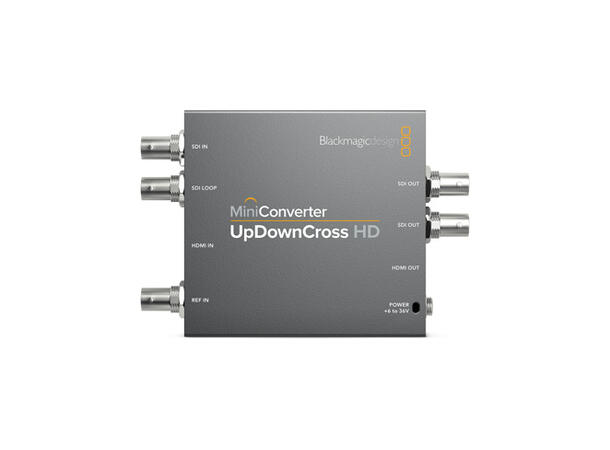

Connections:
Video Input 3G/HD/SD-SDI: 1 x BNC
HDMI: 1 x Type A
Video Output 3G/HD/SD-SDI: 2 x BNC
Loop-Through Out: 1 x BNC
HDMI: 1 x type A
Reference Input Black Burst & Tri-Level Sync: 1 x BNC
Reclocking Yes
SDI Compliance SMPTE 424M-B/296M/292M/259M
ITU-R BT.656/BT.601
SDI Video Sampling 4:2:2
SDI Color Space YUV
SDI Audio Sampling 48 kHz, 24-bit
Supported Video Standards SDI:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50

HDMI:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50

NTSC SD: 525i 59.94
PAL SD: 625i 50
