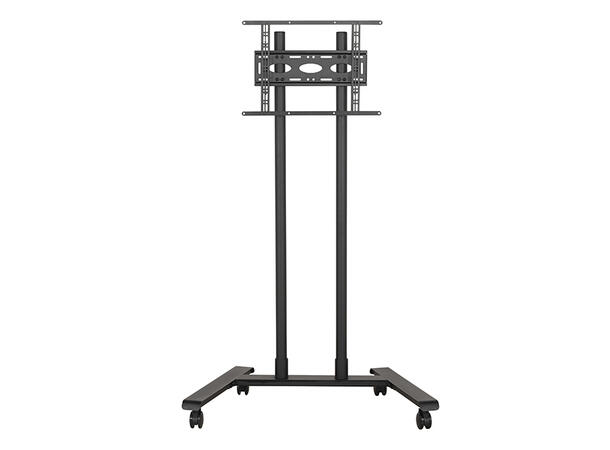

B-Tech BT8504

FLAT SCREEN DISPLAY
TROLLEY / STAND

Designed for large screens mounted in landscape or portrait style,
the BT8504 is ideal for all professional applications. The simple
hook-on installation makes fitting a display to the trolley quick and
easy. The BT8504 mounts screens with fixing patterns up to 455
x 400mm as standard and also includes adaptor arms for larger
screens with VESA fixings up to 600 x 400. Non-marking braked
castors and optional adjustable levelling feet are included for use
as either a portable or freestanding solution.

SPECIFICATION

• Recommended screen size up to 70"
• Max load 70kg
• VESA® fixings up to 600 x 400 (with included adaptors)
• Universal fixings up to up to 455 x 400mm
• Dimensions (with castors) W: 1098mm H: 1854mm D: 740mm
• Colour - Black

FEATURES

• ? Flat screen trolley suitable for large screens
• ? Can mount screens in a landscape or portrait orientation
• ? Includes non-marking 3” locking/braked castors & alternative levelling feet
• ? Shelves and other accessories can be fitted to the poles using Ø50mm
• accessory collars (available separately)

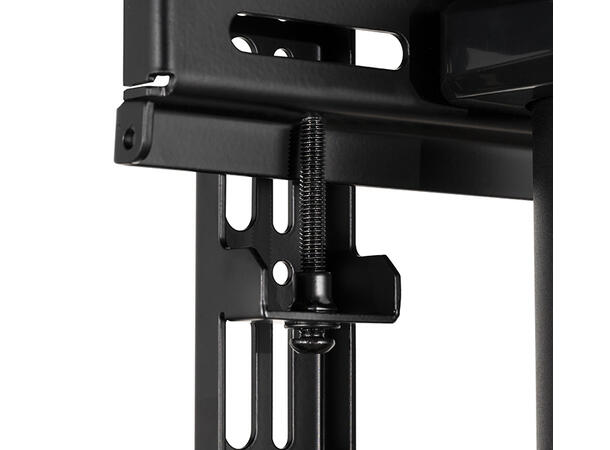

• ? Safety screws help prevent unauthorised screen removal
• ? Integrated cable management for a neat and tidy installation
• ? Simple ‘hook-on’ installation
• ? All mounting hardware included
