AVID Pro Tools | MTRX DigiLink I/O Card kort med 2x ekstra DigiLink porter AVID Pro Tools | MTRX DigiLink I/O Card kort med 2x ekstra DigiLink porter

AVID Pro Tools | MTRX DigiLink I/O Card

kort med 2x ekstra DigiLink porter

Varenr: 9900-74069-00
1 på lager
BeskrivelseTeknisk infoTilbehørRESSURSER

Pro Tools | MTRX DigiLink kort for montering i kortplasser

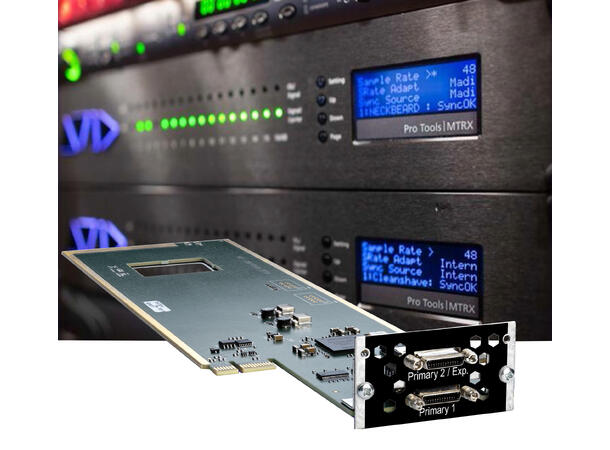

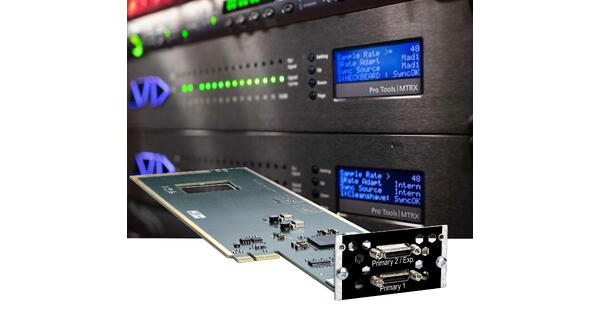

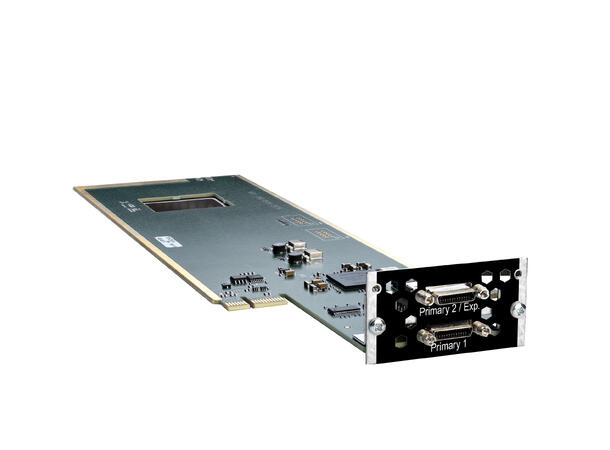

This new DigiLink option card for the Pro Tools MTRX will provide 2 more primary mini DigILink ports to the Avid Pro Tools MTRX modular interface. This will enable an MTRX to become the single hub for a multi Pro Tools room or a single interface for an HDX 3 Pro Tools system.


As standard, MTRX’s base unit comes equipped with dual DigiLink ports, enabling 64 channels of I/O, which is enough for an HDX1 system. However, if you have either multi-HDX or multi-workstation configurations, you require more than 64 channels of DigiLink I/O and until now these larger systems have had to rely on multiple I/O devices to provide enough DigiLink based I/O for all the HDX cards.


The 64-Channel DigiLink Option Card does away with this 64 channel DigiLink I/O limitation on the Pro Tools MTRX. Pro Tools Ultimate can now enable a single MTRX to interface with multiple HDX cards. You will be able to install up to 6 DigiLink option cards in one Pro Tools MTRX and be able to connect multiple Pro Tools workstations to just one MTRX. This finally enables the MTRX to be the workflow centerpiece for all your audio I/O, routing, monitoring, and speaker profile processing, in one unit.


The Digilink Option Card lets you easily connect multiple Pro Tools systems to Pro Tools | MTRX with monitoring control, routing, I/O control, and routing control for Dolby Atmos.


Another scenario, where the new DigiLink option card will help, is with Dolby Atmos workflows. Currently, to get 128 channels from a multi-HDX system to a Dolby RMU, you need multiple MADI and/or Dante interfaces as well as an MTRX to get signal to and from the RMU and to monitor speakers.


But with the new DigiLink MTRX Option card it will be possible to connect multiple Pro Tools systems to a single MTRX and a Dolby RMU with fewer interfaces.

Teknisk info


- Grensesnitt (Protokoll)
  • Digilink ProTools
  • Pro Tools Familien
- Tilkoblinger (Pluggtype HW) DigiLink Mini
