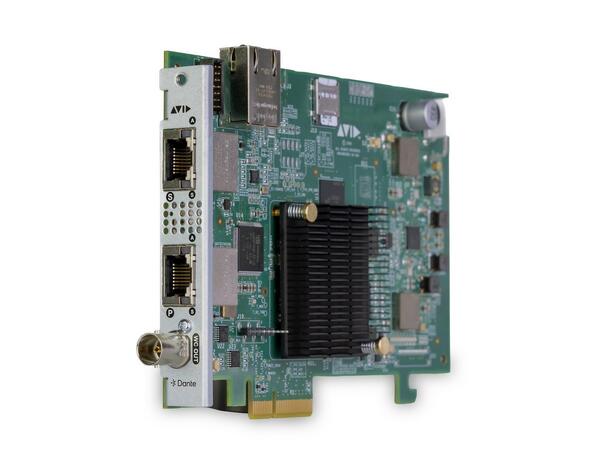

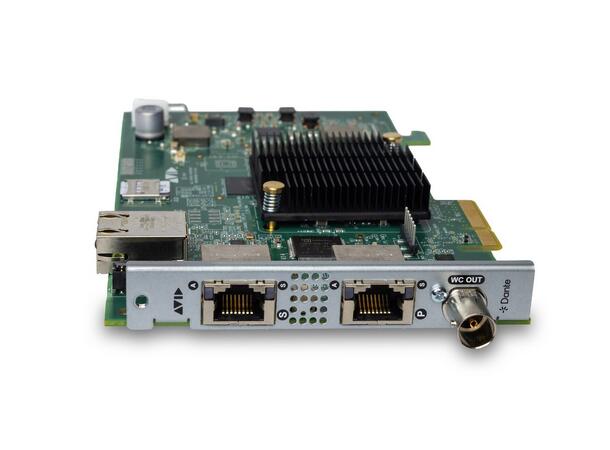

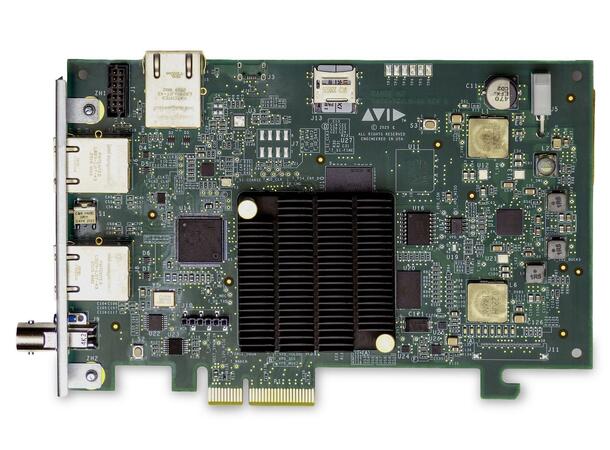

Dante HD Option Card provides 128 channels of Dante I/O at 96 kHz, enabling audio routing across massive productions and multi-console environments. Systems can support two cards for a total of 256 channels of Dante.

Key Features

·  128x128 channels at 96kHz per system

·  Up to 256 channels with a max of 2 cards for E6LX engines

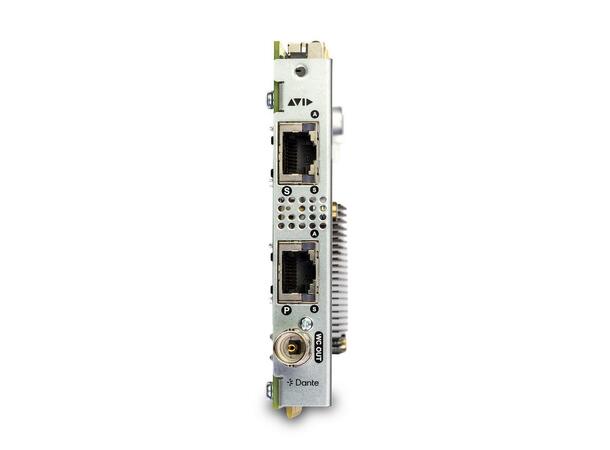

·  BNC-based clocking for stable broadcast and Dante domain integration

·  Native S6L integration – no external workarounds required

Featuring BNC-based clocking for stable synchronization within Dante domains, the card ensures integration even in mixed-clock networks. Because it’s designed specifically for S6L, no external interfaces or configuration workarounds are required.

Built on Audinate’s IP Core technology to allow the full suite of what Dante has to offer. With Dante HD, the S6L system can be the Dante Clock leader or have the ability to clock from a different clock leader via integrated BNC connector, supporting both Switch and Redundant modes as well as unicast and multicast flows.

Sample rate conversion is planned for a future Dante HD Option Card release.
