Audioroot vmDBOX-HRS

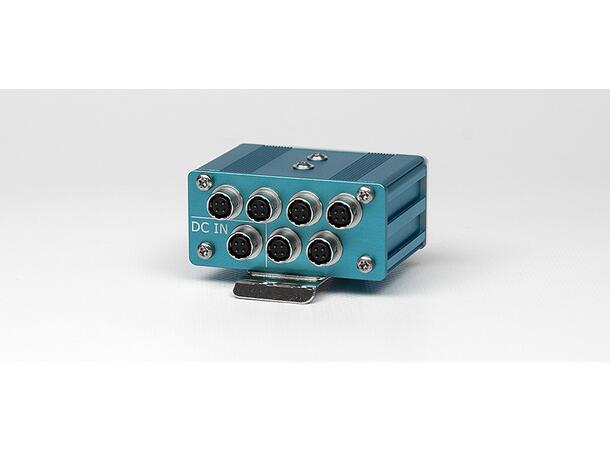

The Audioroot vmDBOX-HRS is an ultra-small, DC power distribution box with 6 protected outputs and an integrated DC voltmeter designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX-HRS has a DC input connector and 6 DC outs all on rugged Hirose locking connectors. Each output is protected with a 2.5 amp resettable fuse.

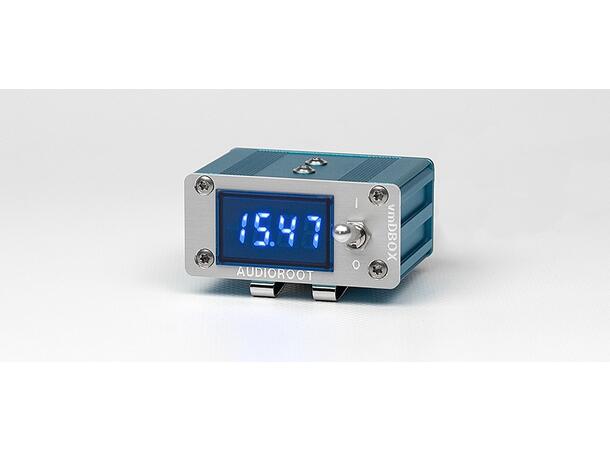

Integrated blue LED voltmeter for battery voltage monitoring

6 power outputs switchable with one rugged locking switch

Polyswitch 2.5A resetable fuses on each output

Compatible with any battery ranging from 6.5V to 18V DC

Hirose locking connectors

Very low power consumption : the vmDBOX-HRS does not affect the battery’s autonomy

Compact and lightweight : 130g / 65 x 50 x 30 mm
