Audioroot eSMART TRIO

Advanced smart battery distributor

Varenr: 120483
-+
1 på lager

Jesper Kolvig

Salgssjef

+47 23 19 96 07









BeskrivelseTilbehørRESSURSER
Beskrivelse

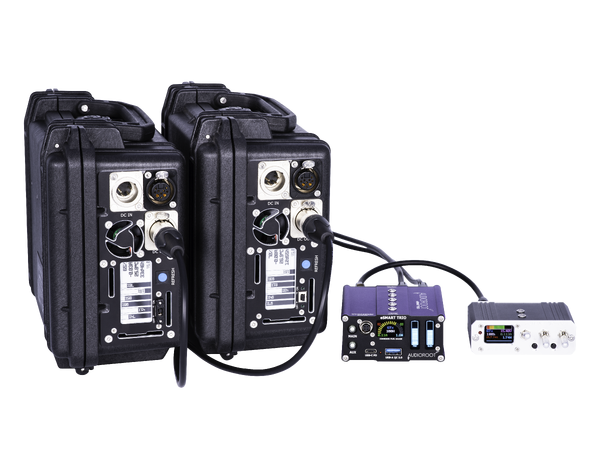

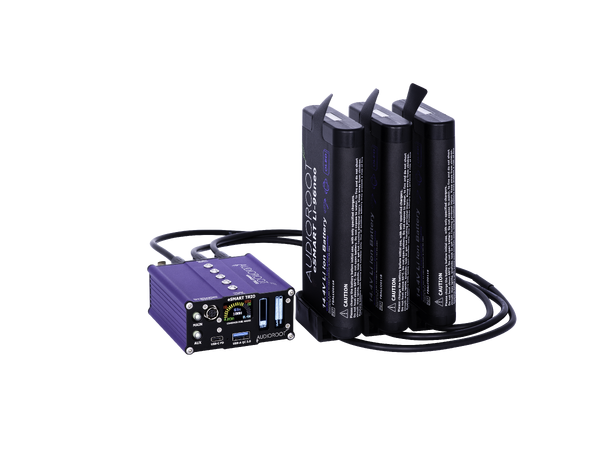

The AUDIOROOT eSMART TRIO is an advanced portable smart battery power distribution system for location sound recordists. It can accept up to 3 independent power sources (3 batteries or 2 batteries + 1 AC/DC external power supply) and distributes power via 8 x DC connectors and 2 x USB ports.

This product was designed to offer sound location recordists a wide variety of solutions to power their devices. With the eSMART TRIO users can benefit from advanced features like battery hot swapping and/or AC power with battery backup, smBUS data flow through, overcurrent/short circuit fault detection and more…

The eSMART TRIO offers 7 industry standard Hirose™ compatible DC output connectors as well as a Switchcraft™ compatible TA4F output connector with smBUS battery data aggregation.

The distributor also offers 1 x USB-A Quick Charge 3.0 port and 1 x USB-C port with Power Delivery. Finally all battery and power information is displayed on a 3 OLED displays.

Key features :

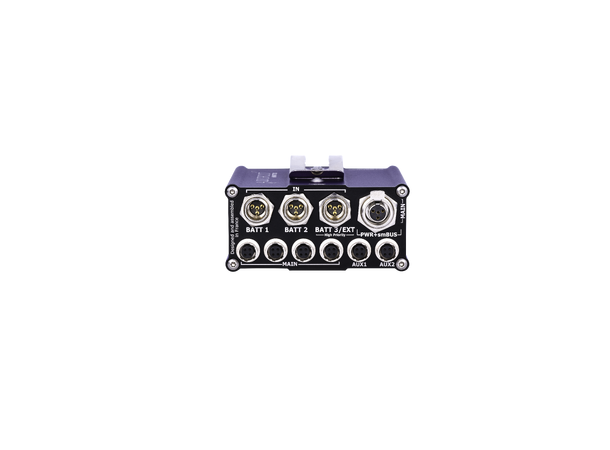

  • 3 x power inputs on rugged TA4M connectors
  • 6 x industry standard Hirose™ compatible DC output connectors on the rear panel (4 main and 2 auxiliary)
  • 1 x TA4F Switchcraft™ DC output connector with smBUS battery data aggregation

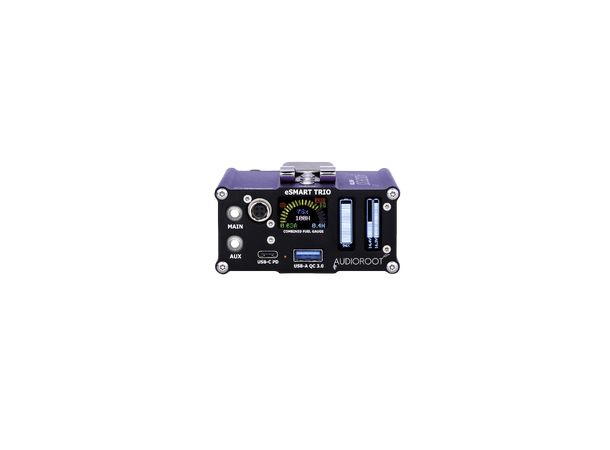

  • 1 x industry standard Hirose™ compatible DC output connector on the front panel (main)
  • 2 x white led illuminated pushbuttons
  • 1 x USB-A connector with Quick Charge 3.0
  • 1 x USB-C connector with Power Delivery
  • 1 x 96×64 pixels color OLED display
  • 2 x 128×28 pixels blue OLED display
  • 10 x M3 threaded holes for various mounting options
  • 1 x belt clip included
  • max. total current supply : 11.5A (165W @ 14.4V)
  • 1 x mini USB port for firmware upgrades (located inside the unit)
  • Size : 83 x 40 x 94mm (3.26? x 1.57? x 3.70?)
  • Weight (w/out belt clip) : 300g (10.58 ounces)
