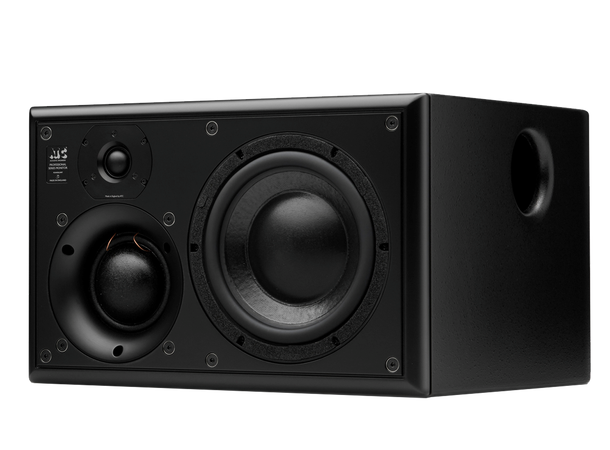

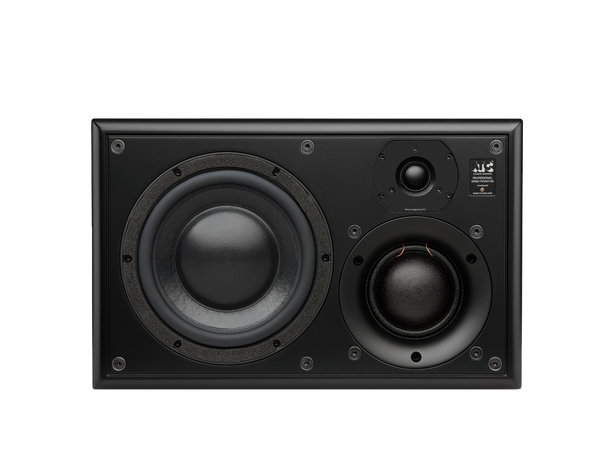

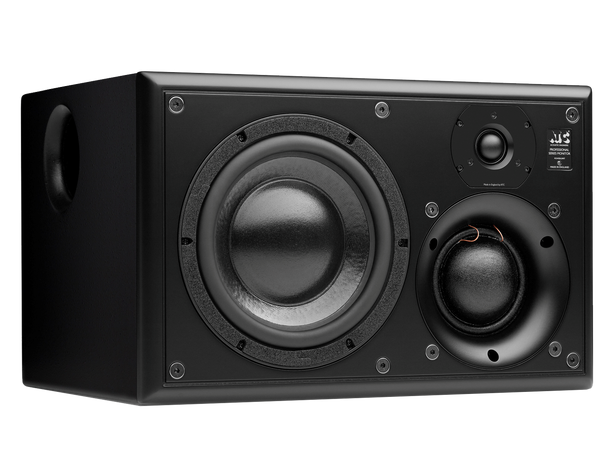

ATC SCM25Ai PRO MK2 3-veis Studiomonitor

Passiv, 47Hz-22kHz, 3" Mid, 7" LF ATMOS

Varenr: 118810
-+
Bestillingsvare (19 dager)
BeskrivelseTeknisk infoTilbehørAlternativerRESSURSER
Beskrivelse

ATC SCM25Ai MK2 Pro

Passiv versjon av SCM 25A for installasjon i tak i  Dolby Atmos systemer. Pris. pr. stk.
I tillegg kommer ønsket rack med forsterkermodul (R1, R2 eller R3) og kabling. Gir deg kvalitet, nøyaktighet og ytelse.

Overview

    • Active system with Remote Mounted Amps.
    • Three 19" rack mount amp options: 1 , 2 and 3-channel (3-way). ´
    • Braced & reinforced cabinet with 4x M8 rear panel fixings for mounting.
    • Compatible with a wide range of wall & ceiling mounts



Specifications

Drive units Bass: 1 x 7”/175mm short-coil carbon-paper cone. SB50-164SC 8 Ohm.
Mid: 3”/75mm soft dome. SM75-150 16 Ohm.
HF: 1”/25mm soft dome. SH25-100A Vifa.

Amplitude linearity 74Hz - 17kHz (+/-2dB)
Cut-off frequencies 47Hz - 22kHz (-6dB freestanding)
Crossover frequencies 380Hz & 3.5kHz
Horizontal dispersion +/-80° coherent
Vertical dispersion +/-10° coherent
Maximum continuous SPL 109dB (per pair at 1m)

Audio input (speaker level) Rear panel mounted Neutrik NL8
Status input (power/limit) Rear panel mounted female 5-Pin XLR

A 19" rack mounted remote amplifier is available in the following packages, details of which are available on their own dedicated datasheets:


R1-234 Pro 1-channel Remote Amp, 234W, 3-way, 19”/5U Rack Mount
R2-234 Pro 2-channel Remote Amp, 234W, 3-way, 19”/5U Rack Mount
R3-234 Pro 3-channel Remote Amp, 234W, 3-way, 19”/5U Rack Mount

Physical Dimensions og braketter:

Loudspeakers are built as mirror image pairs - left speaker shown
Mid-range dome is the reference listening axis
If flush mounted, port should be blocked using port bung (provided).
Weight 18.75kg per cabinet.

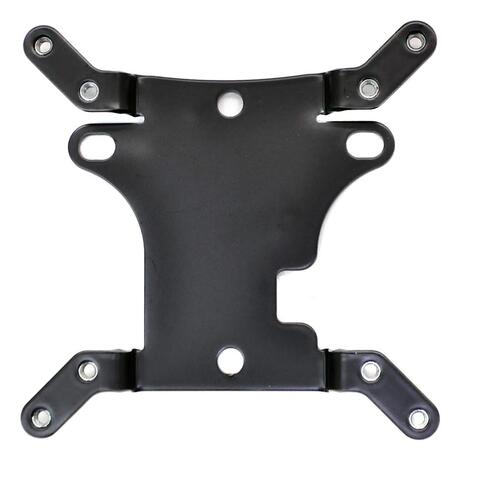

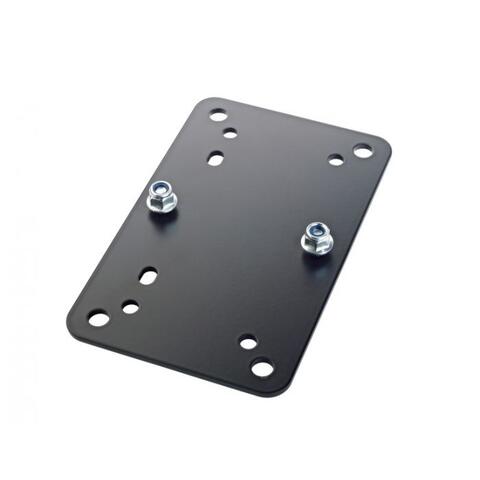

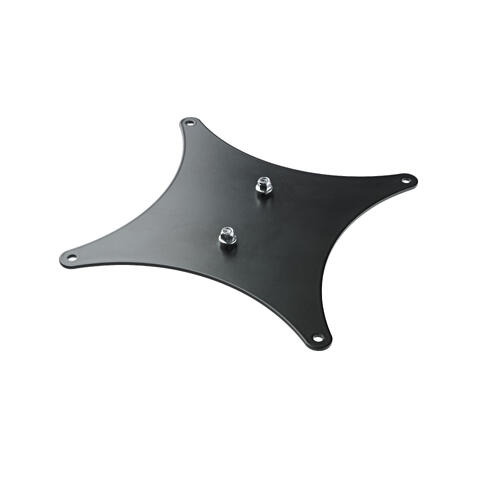

Compatible wall/ceiling mounts: K&M 24496, 24494. Adaptive Tech MM-022-BT, MM-024-BT, MM-060, MM-018, MM-3RDX-18.






















Teknisk info

Produktinformasjon

- Funksjon & bruk Dolby Atmos
