LAUNCH SPECIAL FIRMWARE

    Supports full Dolby suite including Dolby Atmos® and Dolby Vision®
    Supports DTS-X® with IMAX Enhanced®
    Supports AURO-3D®
    Supports MPEG-H®
    Supports SONY Reality360®
    16 Channels of Dante® out up to 48k (96k Dante not supported)
    16 Channels of AES67® up to 96
    eARC® support
    Headphones
    Digital COAX

CONVERT HDMI AUDIO TO:

    AES67  (up to 16 Channels) ?
    DANTE® (up to 16 Channels)
    BINAURAL - Analog & Digital ?(2 Channels)

DECODE / ?RENDER

    DOLBY - Atmos®, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Surround, Dolby Vision (passthrough)
    DTS - DTS-X®, ES, HD Master Audio, IMAX Enhanced, HD High Resolution Audio, Express-HD LBR, Neural:X
    AURO-3D
    MPEG-H
    SONY360
    PCM - 2ch, PCM Multi-channel, Downmix?

ADDITIONAL FEATURES

    Linux / Shark platform architecture
    HDMI v2.1
    4 function IR remote control
    (power, mute, volume-up, volume-down)
    16 & 24 bit compatible
    Decodes up to 16 channels at:
        up to 24 bit / 48kHz (for Dante)
        up to 24 bit / 96kHz (for AES67)
    ?Digital ?COAX - up to 24 bit / 192kHz (2 channel)
    Variable Digital Output (AES67/Dante and COAX) controlled via GUI / Network / IR
    Manual Volume control assignable via GUI for Headphone or AoIP output
    ARC & eARC support
    ARC & eARC Lip-sync delay
    HDMI 2.1 pass-through output
    Includes Power over Ethernet (PoE)

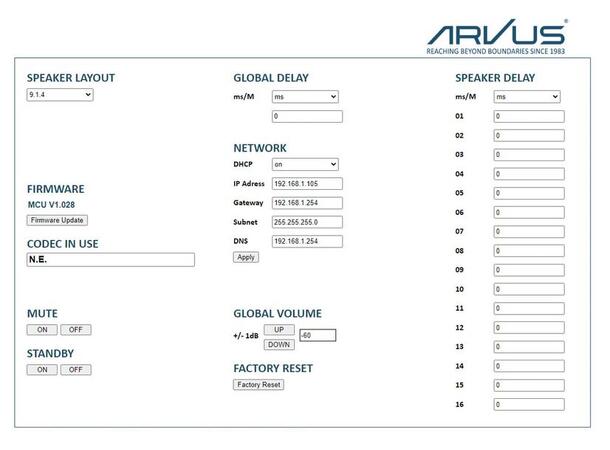

    GUI for system set up (via ethernet)
    Firmware upgrade over ethernet
    Object based rendering from 5.1.2 to 9.1.6
    ?HDMI OUT has EDID emulation for stable device communication
    ?Supported in Crestron system control

PHYSICAL FEATURES

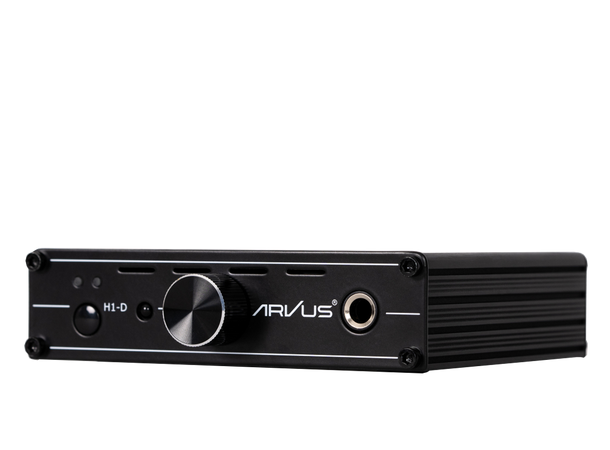

    Tough extruded aluminum case, with metal panels.
    Front and rear air-slots for ventilation.

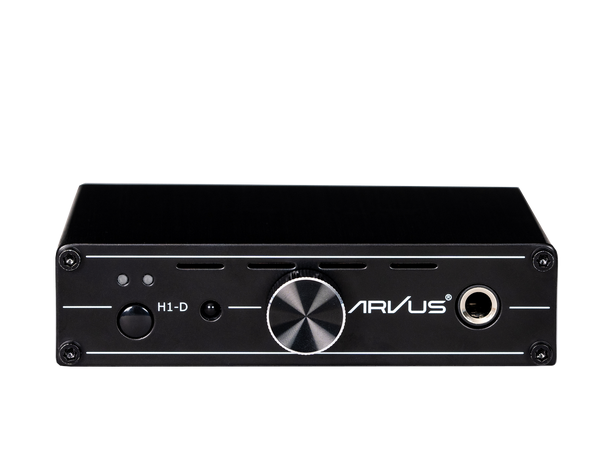

    Power switch and LEDs on the front panel.

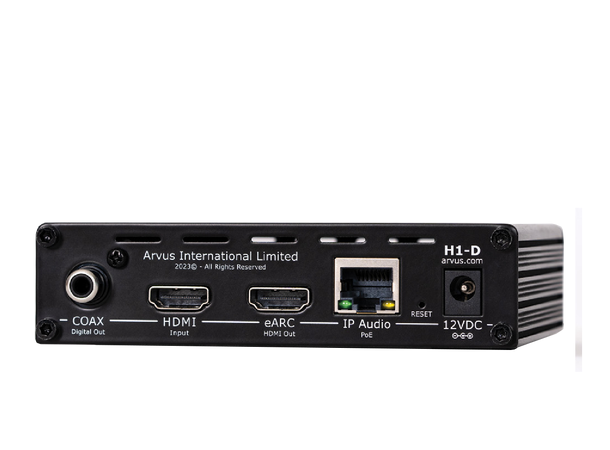

    Inputs and outputs mounted on the back panel.
    Professional grade product for 24/7 operation
    External international power supply (100v/240v)
    Weight – 1kg / 2.2 Ibs
    120mm W x 100mm D x 30mm H

The H1-D uses a newly developed hardware platform based on the latest ADI chipset SC598 coupled to a 1.2Ghz ARM core.

Most DSP functions will be performed on the DSP with the ARM being used for audio transport (AoIP) functions.

The H1-D will support 16 channels of Dante using the Dante Embedded Platform, a software based Dante implementation. The
H1-D will follow a Dante clock master and sample rate, converting the audio to match the Dante clock and supports 16 channels of 44.1 or 48kHz audio output via Dante multicast with 1ms frames.

A native AES67 mode will support 16 channels out at sample rates up to 96kHz. The AES format will be L24 audio with 1ms packets supporting the widest compatibility with other AoIP solutions.

At time of shipping, all units will support the following formats/brands. ?AES67, AURO-3D®, Dante®, Dolby Atmos®, DTS-X®. IMAX Enhanced®, MPEG-H and SONY Reality360®.
