Siena W - Bass Trap Corner 1.2 - Absorber Bass Panel

The Corner bass trap is the latest in low frequency absorption. This elegant panel integrates a tuneable membrane over a sealed volume, containing a high performance acoustic core. A secondary compartment positions Helmholtz resonators in the high pressure zone of the room. The panel is completely tuneable, by means of an adjustable weighted membrane, allowing to pin-point the performance of the panel to a target frequency.

The panels' tuneable membrane works in a similar way to a speaker cone, allowing for a much superior - and controlled - performance. A central mass is supported by an elastic membrane - This mass can then be altered to change the resonant frequency of the membrane, stepping the peak performance of the Trap from 60 to 86 Hz.


Type:
TPDA - Artnovion technology
Tuneable Pistonic Diaphragmatic Absorber

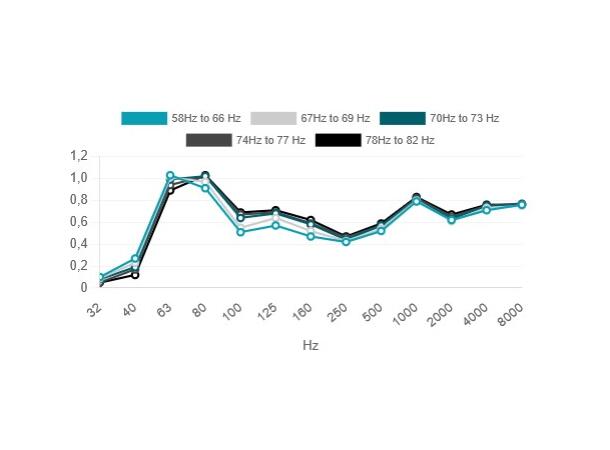

Tuneable absorption range:
58Hz to 82Hz.
Hz-by-Hz fine tuning
