Appsys ADX-8



Send ADAT over Cat5, up to 100 meters!

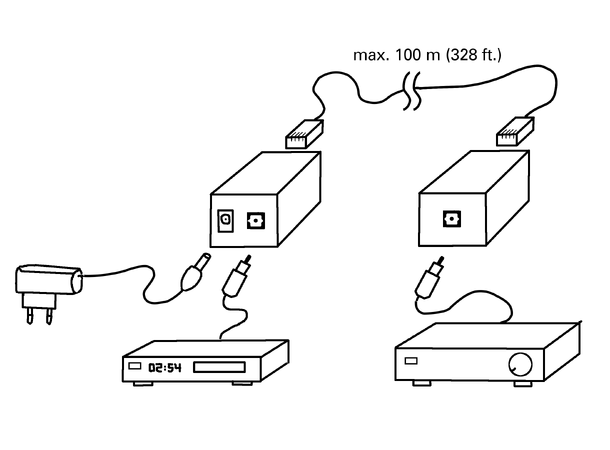

Without any kind of compression or other potentially sound-degrading conversions, the input signal is 100% bitwise transmitted in real time to the output. Ideally suited for connecting your PC to your HiFi equipment, for upgrading your network cabling to a true HiFi-capable sound bridge, or to listen to music in uncompromising quality anywhere you can reach with standard network cabling. Or use the extender in your recording studio to overcome the 5 meter length limit of ADAT connections!

Features

  • Lossless, uncompressed 1:1 transmission
  • Standard TOSLINK optical jacks at input and output
  • Eliminates hum, buzz and noise thanks to galvanic isolation (ground loop removal)
  • Near-zero latency (<1µs)
  • Compatible with all digital audio formats (ADAT Lightpipe, SPDIF, AC-3 (Dolby Digital ®), DTS® etc.)
  • up to 96 kHz sample rate / 12.5 MBit signalling rate
  • Cost-effective installation using standard Cat5 network cabling
  • Quality product "Made in Switzerland"

Includes

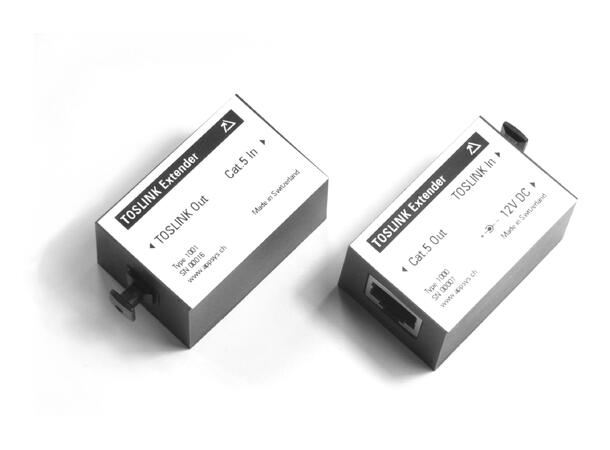

  • Transmitter (TOSLINK->Cat5 Cable adapter)
  • Receiver (Cat5 cable->TOSLINK adapter)
  • AC adapter in "green" switching technology
  • Printed manual
Egenskaper

Produktinformasjon

- Grensesnitt (Protokoll) S/PDIF
- Tilkoblinger (Pluggtype HW)
  • RJ45
  • ADAT optisk


Produktinformasjon

- Grensesnitt (Protokoll) S/PDIF
- Tilkoblinger (Pluggtype HW)
  • RJ45
  • ADAT optisk
