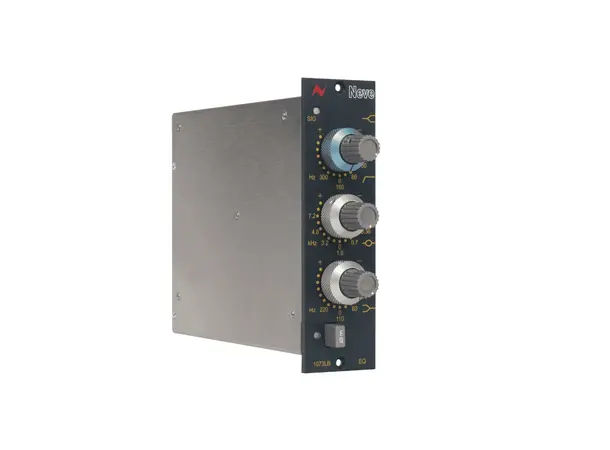

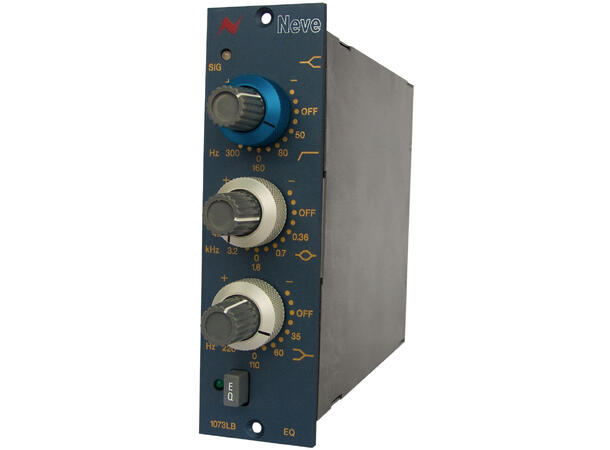

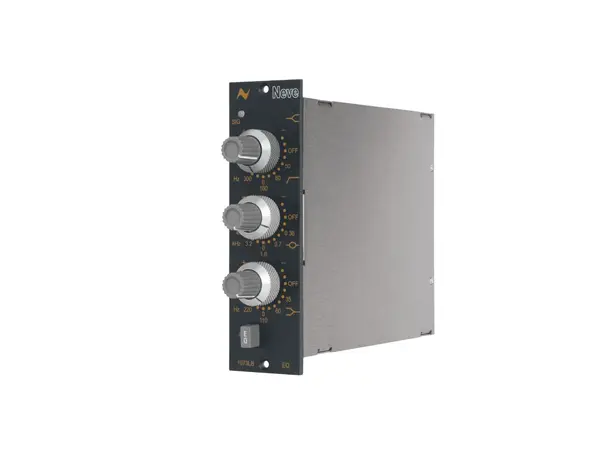

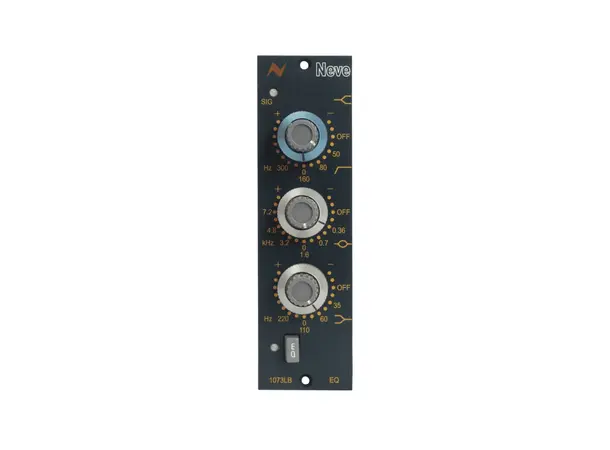

AMS NEVE 1073LBEQ
Compact 1073® EQ
Based on the legendary inductor-based 3-band EQ from the classic 1073®, the 1073LBEQ packs a punch recognised by so many users worldwide, now available in a compact 500 series format.
General Specification
- Signal LED – Off below -26dB Green between -25dB and +23dB Red at +24dB or higher
- Switch for EQ IN/OUT function, with LED indication
- Electronically balanced circuits used in Line Input and Line Output stages for standalone module use
- Audio Processing Insert design
- Compatible 500-series rack not supplied
Parameters
- High-Frequency Band – Smooth +/-16dB of fixed frequency shelving at 12kHz
- Mid-Frequency Band – Smooth +/-18dB of peaking, fixed Q, selectable centre 0.36kHz / 0.7kHz / 1.6kHz / 3.2kHz / 4.8kHz / 7.2kHz
- Low-Frequency Band – Smooth +/-16dB shelving 35Hz / 60Hz / 110Hz / 220Hz
- High Pass Filter – 18dB per octave slope 50Hz / 80Hz / 160Hz / 300Hz
Dimensions
- Height – 132mm (5.25 pounds)
- Width – 38mm (1.5 pounds)
- Depth – 145mm (5.75 pounds)
- Weight – 0.6Kg (1.25 pounds)
