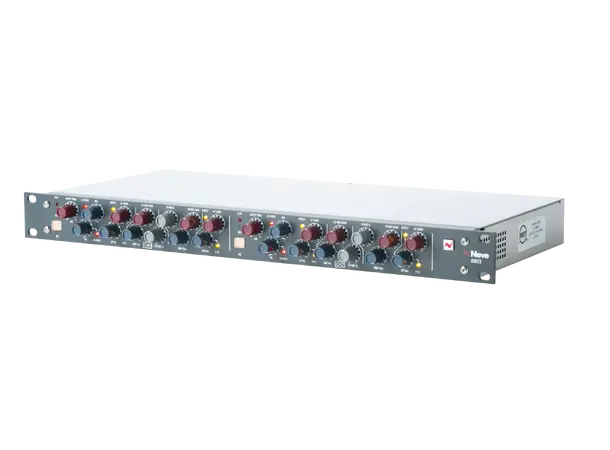

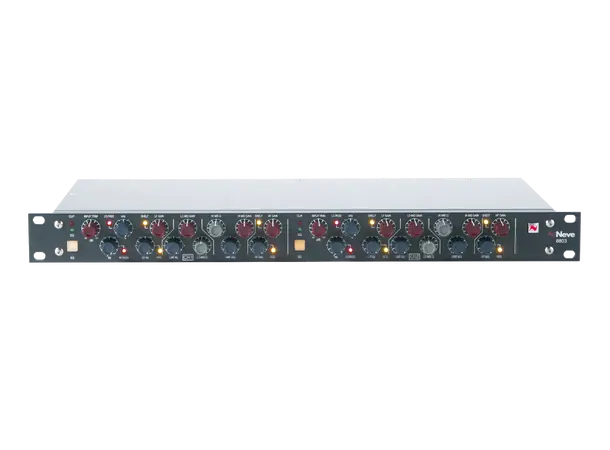

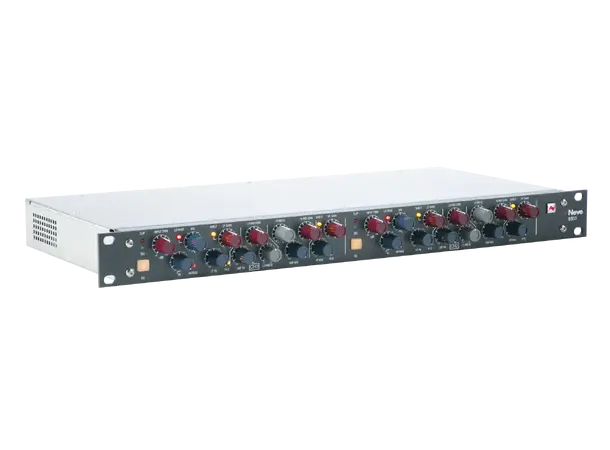

AMS NEVE 8803

Mastering-quality EQ from the exquisitely crafted 88RS console.

The 8803 dual-channel equaliser and filter follows the grand tradition of Neve® processors. Modern producers and mixing & mastering engineers looking to shape sounds with unrivalled sonic purity see the 8803 Dual Channel Equaliser as the superior choice.

General Specification

• Revered equalization circuitry derived from classic 8108 design and flagship 88RS analogue console
• Hand-built and hand-wired by Neve in Burnley, England
• ±20dB Input trim
• USB port for recall of settings via Mac or PC and control software

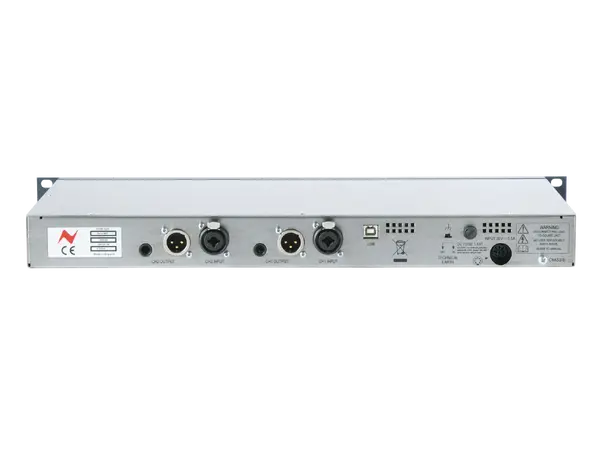

• XLR input combination jack, +4dBu, -10dBV
• XLR and parallel jack outputs
• External 100V-250V power supply


EQ Specification

• High pass filter 30Hz-300Hz, 12dB per octave
• Low pass filter 1.5kHz-18kHz, 12dB per octave
• EQ High 1.5k-18kHz, selectable Shelving/Bell, selectable Hi Q
• EQ Mid High 0.8kHz-9kHz, Q range: 0.3 to 7 continuously variable
• EQ Mid Low 120Hz-2kHz, Q range: 0.3 to 7 continuously variable
• EQ Low 33Hz-440Hz, selectable Shelving/Bell, selectable Hi Q
• EQ bypass switch


Audio Performance

• Max Output Level: +26dBu
• Frequency Response: +/- 0.3dB 10Hz – 20kHz  +/- 0.5dB 10Hz – 35 kHz
• Outputs: Max +26dB into 600 Ohms. Zout 75 Ohms ±5% @ 1kHz, balanced and earth-free An unbalanced output 8dB below the level of the balanced output is also provided.
• Distortion: <0.006 (10Hz to 20kHz using window of 10hZ – 80kHz)
• Noise: <80dB 20hz – 20kHz (Using measurement window of 10hZ – 22kHz)
• Input Impedance: >20k Ohms
• Output Impedance: 50 Ohms


Dimensions

• Width: 48.2cm (19 inches)
• Height: 4.4cm (1¾ inches)
• Depth: 24cm (9½ inches) – without power socket plugged in.
• Weight: 2.5kg (5½ pounds)
