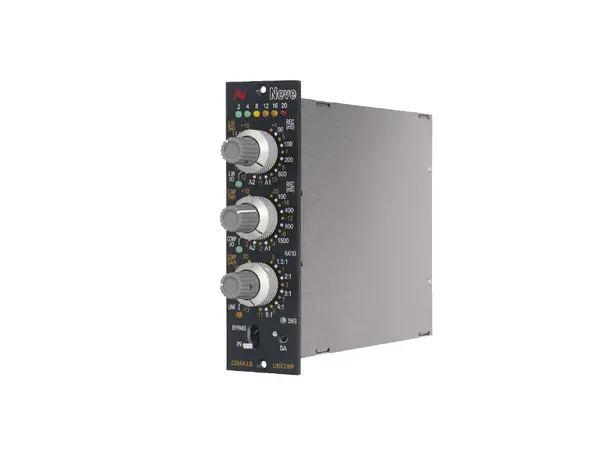

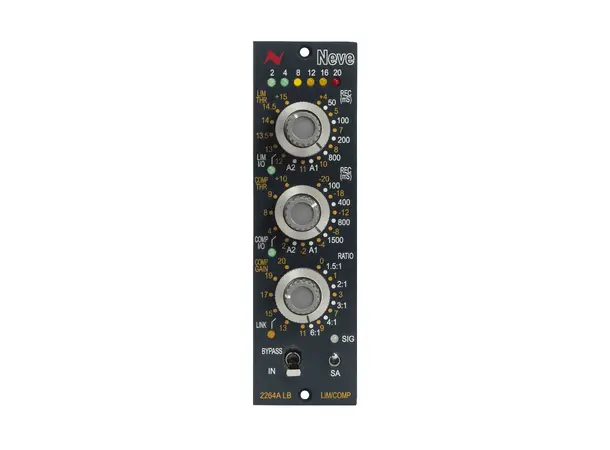

AMS NEVE 2264ALB

The influential and revered classic – compact.

Compact yet extremely powerful, the 2264ALB pushes the classic design into the modern age. Discrete Class A/B circuitry, custom-designed Marinair® transformers, and unique diode bridge design make this processor, with independent compressor and limiter circuitry, unmatched.

The 2264ALB uses exclusive Marinair® specification transformers on the input, bridge-driver, sidechain, and output stages to produce analogue characters throughout.

General Specification

• Classic mono Limiter/Compressor, available in a 500-series format
• Transformer-coupled circuits used in Input, Bridge-driver, Side-chain and Output stages
• Independent Limiter and Compressor IN/OUT selectors
• BYPASS switch connects input terminals directly to output terminals
• Slow Attack switch changes between classic 2264A attack settings and new Slow Attack setting for buss compression work
• Digital LED meter with approximate PPM ballistics indicates 0dB to 20dB of gain reduction
• Audio Processing Insert design allows the audio to/from the 2264ALB module to be inserted into the audio path of an existing 1073LB module (modules must be fitted in the same 500-series rack)
• Compatible 500-series rack/enclosure with Power Supply and line-level input/output connectors required, not supplied.


Audio Performance

• Input – 10Kohms Bridging, balanced & earth free
• Output – Maximum output into 600ohms 26dBm,  balanced & earth free
• Gain – nominally 0dBm
• Noise – 20Hz – 20kHz < -75dBm with no gain applied, -55dBm with +20 make-up gain added
• Frequency Response – +/-0.5dB 20Hz-20kHz
• Distortion < 0.05%


Parameters

• Limit threshold – variable from +dBm to +15dBm
• Limit Ratio – no less than 100:1
• Limit attack time – 4ms
• Limit recovery time – 50ms/100ms/200ms/800ms/Auto 1 (100ms/2sec)/Auto 2 (50ms/5sec)
• Compression ratio – 1.5:1/2:1/3:1/ 4:1/6:1
• Compression threshold – variable from -20dBm to +10dBm
• Compression attack time – 3ms (normal) 10ms (slow attack)
• Compression recovery time – 100ms/400ms/800ms/1.5sec/Auto 1 (100ms/2sec)/Auto 2 (50ms/5sec)


Dimensions

• Height – 132mm (5.25 inches)
• Width – 38mm (1.5 inches)
• Depth – 145mm (5.75 inches)
• Weight – 1.1Kg (2.42 pounds)
