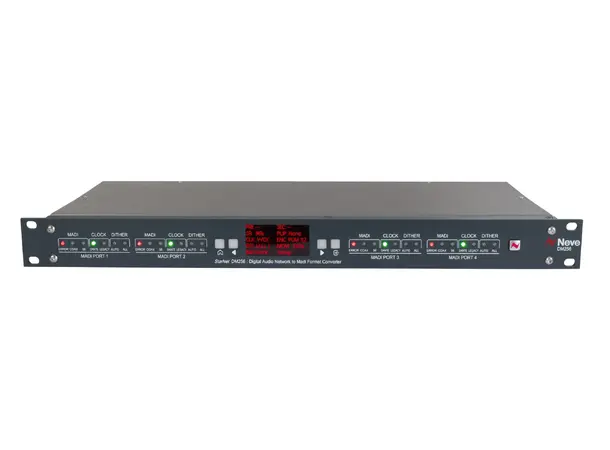

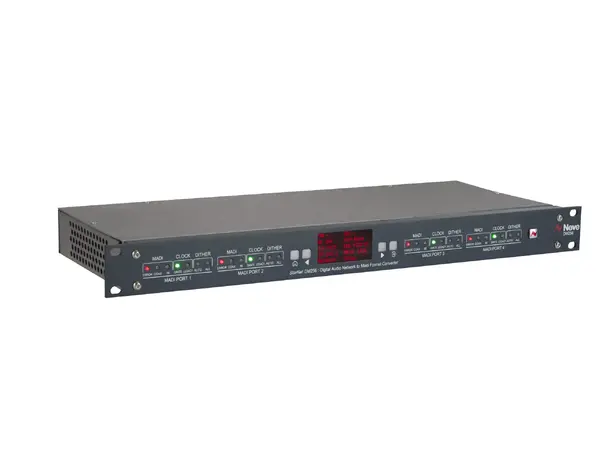

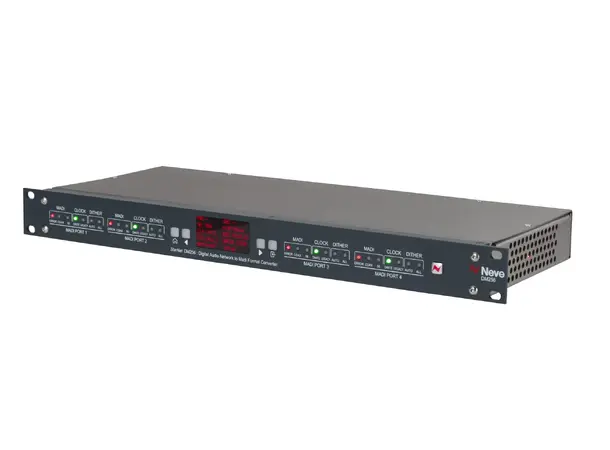

AMS NEVE StarNet DM256
A Compact Powerhouse for Audio Format Conversion.
A powerful, high channel count, MADI to Dante and Dante to MADI digital audio format converter housed in a 1U 19” rack chassis.
The StarNet DM256 is the first Neve unit to integrate Dante IP core technology. This powerhouse enables an expansive I/O count of up to 256 channels of Dante Tx & Rx through a single Ethernet connection, setting a new benchmark in digital audio technology.
General Specification

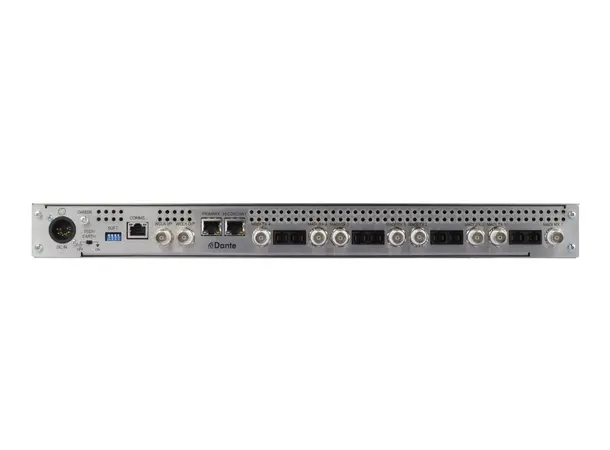

- 4x MADI Duplex SC optical ports
- 8x MADI BNC connectors (4x Rx, 4x Tx)
- Dante Primary and Secondary connection for Audio-over-IP application
- Word Clock Sync In/Out
- 2x Dante Ethernet ports (Primary & Secondary)
- 1x Communications Ethernet port
- External PSU
- Voltage: 90-240V
- Current: 0.14A @240V, 0.33A @90V
- Heat Dissipation: 313watts
Dimensions
- Width: 483mm (19 inches)
- Height: 24mm (1.75 inches)
- Depth: 185mm (7.3 inches)
- Weight: 2.1Kg (4.6Lbs)
