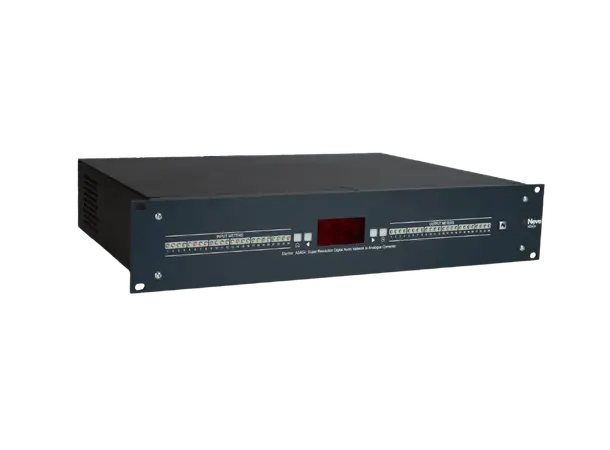

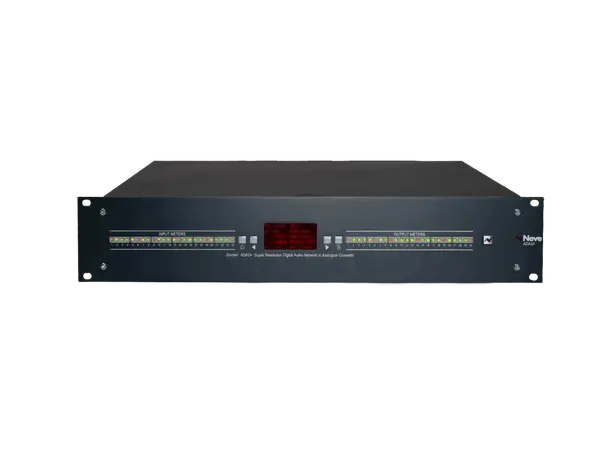

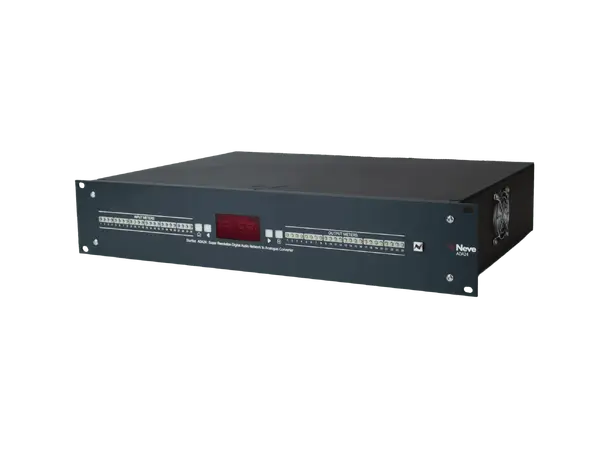

AMS NEVE StarNet ADA24
Precision Dante™ Conversion for the Modern Professional Studio
Mastering-grade 24×24 Dante™ analogue AD/DA converter designed for uncompromising audio quality and seamless integration into today’s professional recording, broadcast, live sound, and post-production environments.
The StarNet ADA24 was created in close collaboration with engineers from the world’s most respected recording facilities. Extensive blind listening tests and direct comparisons with leading AD/DA converters informed every stage of development. Ongoing feedback drove multiple refinements to both analogue and digital circuitry, ensuring the ADA24 meets the exacting performance, reliability, and sonic standards demanded by the world’s most elite studio environments.
General Specification

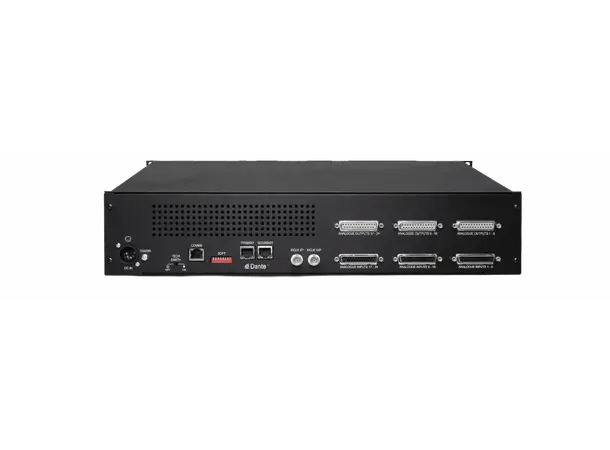

- 24x Analogue Line Inputs (2x D-Sub 25-pin Tascam Configuration)
- 24x Analogue Line Outputs (2x D-Sub 25-pin Tascam Configuration)
- Word Clock Sync In/Out
- Selectable Headroom from +18, +24, +26dB
- 2x Dante Ethernet ports (Primary & Secondary)
- 1x Communications Ethernet port
- External PSU
- Voltage: 90-240V
- Current: 0.14A @240V, 0.33A @90V
- Heat Dissipation: 30 watts
Audio Performance
- Headroom: Selectable +18, +24, or +26dBu
- Distortion: (THD+N): Typically 0.0008% (measured at 1kHz? +26dBu setting 2Hz to 92kHz filter)
- Dynamic Range ADC: >119dBFS
- Dynamic Range DAC: >122dBu
- General Noise: <-96dBu (A-wtg)
- Frequency Response: +/- 0.1dBu 5Hz – 22kHz (+/- 3dBu 2Hz – 92kHz)
Dimensions
- Width: 483mm (19 inches)
- Height: 88mm (3.5 inches)
- Depth: 350mm (13.78 inches)
- Weight: 5.075Kg (7.9Lbs)
