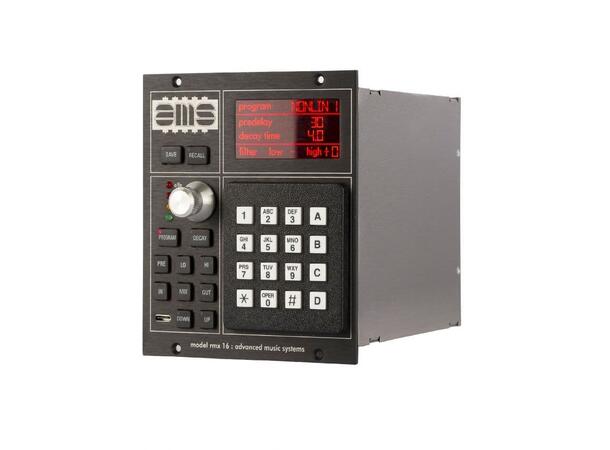

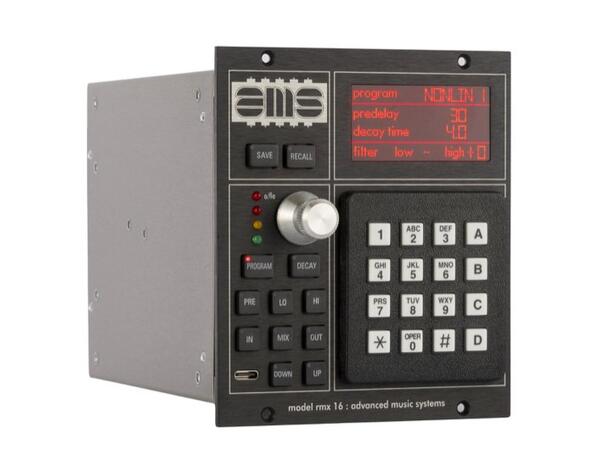

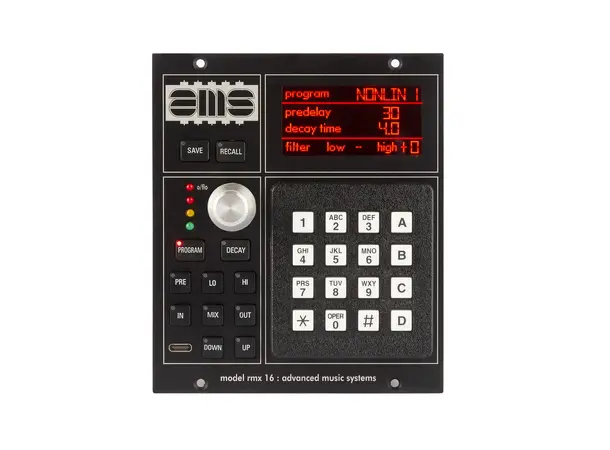

AMS RMX16

A classic – reimagined

The world’s first microprocessor-controlled, full-bandwidth digital reverberator has characterised an enormous number of seminal recordings from the 1980s onwards – now it’s been adapted for 500 series format.

General Specification

• High-performance 32-bit DSP processing and 24-bit, 48KHz sampling with premium A/D and D/A converters.
• Over 100dB dynamic range with +22dBu of headroom.
• Adjustable input and output levels for optimum signal to noise performance.
• Low power consumption (and therefore cool running).
• Independent control of each program’s fundamental reverberant parameters.
• Nudge Buttons to increment or decrement data for all selectable reverberation functions.
• Alphanumeric program descriptions for ease of use when storing or recalling information for the unit’s memory.
• New rotary push encoder enabling all parameters and settings to be adjusted by ear.
• New wet/dry mix blend function.
• New save/recall feature with 100 user-defined memory slots.
• Heat Dissipation <7 watts
• Voltage +/-16V
• Current Amps RMS +/-16V 0.2A (MAX)
• Compatible 500-series rack/enclosure with Power Supply and line-level input/output connectors required, not supplied.


Audio Performance

• Headroom – >+22dBu @ 1kHz (<0.5% THD+N)
• Dynamic Range – 112dB @ 24dBu
• Signal to Noise Ratio – 82dBu 20Hz – 20kHz +4dB
• Frequency Response – Typically +/- 0.25dB, 20Hz to 18kHz
• Distortion (THD+N) – Typically 0.002% @ 1kHz (measured at +20dBu, 10Hz to 20kHz filter)
• General Noise – <-75dBu (20Hz to 20kHz filter)
• Line Inputs – Input Impedance ˜20KO electronically balanced in slot 1
• Line Outputs – Output Impedance ˜150O electronically balanced: (L) Slot 1 (R) Slot 3


Dimensions

• Height – 133.4 mm(5.25 inches)
• Width – 114.3mm (4.5 inches)
• Depth – 145mm (5.7 inches)
• Weight – 0.84kg (1.85 inches)
