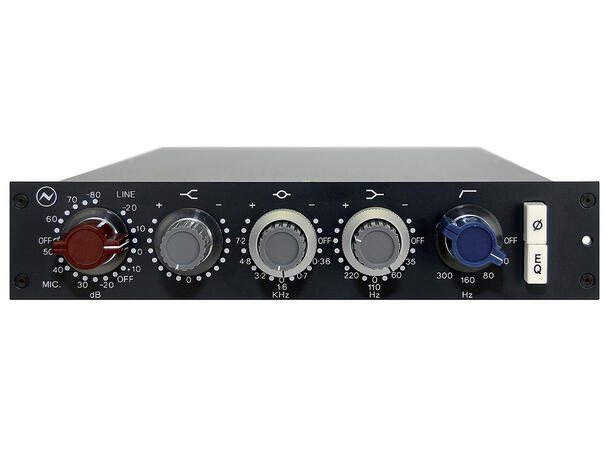

AMS NEVE 1073N
The 1073® with a Modern Twist
Designed and built in England, the modern-day 1073N is the perfect choice for producers looking to access classic Neve® sound in a true-to-form 80-series module.
General Specification
- Classic transformer microphone preamp amp (Class A design) with integral DI input and Phantom Power.
- Exclusive Neve® Marinair™ transformers used on input and output stages.
- 3 EQ bands & HP filter.
- Can be used as a standalone module or inserted into a compatible rack or console.
- Mic & Line inputs are transformer balanced and earth free.
- Designed and built in England.
- Power (Standalone) – 127mA ±10mA at 24V DC. Negative Earth
Preamp Specification
- Microphone Input: Gain +80db to +20dB in 5dB steps.
- Line Input: Input impedance 10k ohms, gain +20dB to -10dB in 5dB steps.
- DI Input: Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on) Gain +80dB to +20dB in 5dB steps.
EQ Specification
- High Frequency: Smooth +/-16dB fixed frequency shelving at 12kHz
- Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
- Mid Frequency: Smooth +/-18dB peaking, ? xed ‘Q’ with selectable centre frequencies of 0.36kHz, 0.7kHz 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
- High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz
Audio Performance
- Output: Maximum output is >+26dBu into 600O.
- Output is transformer balanced and earth free.
- Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output.
- (80kHz bandwidth) into 600O.
- Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out.
Dimensions
- Width: 45mm (1.8 inches)
- Height: 222mm (8.75 inches)
- Depth: 254mm (10 inches)
- Approx. Weight: 2.5kg (5.5 pounds)
