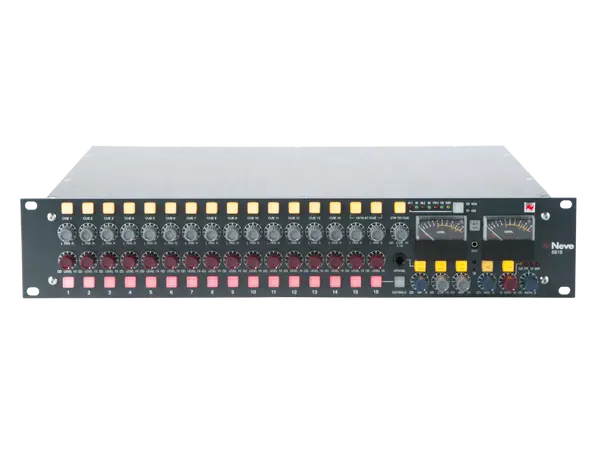

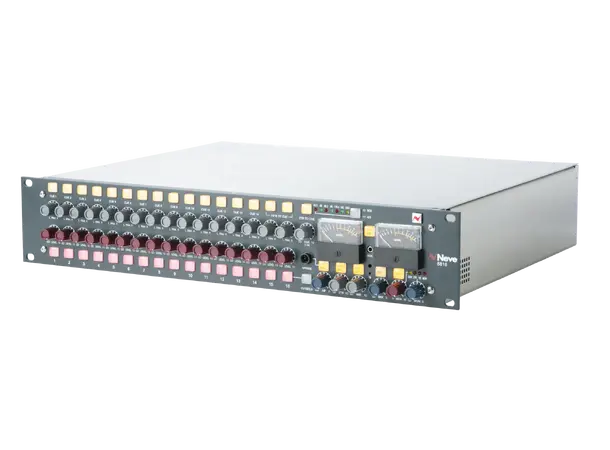

AMS NEVE 8816
More than just a summing mixer…
The 8816 brings legendary Neve® console sound to 19? rack format. Using the same topology as the classic 80 Series console, with two Marinair® transformers on the stereo bus output, the 8816 is the ultimate 16 channel rackmount Neve console.
General Specification
- Hand-built, hand-wired 16-channel summing mixer for use in professional computer-based studios
- Classic Neve analogue transformer mix bus topology
- Instant Recall of settings stored on PC or Mac via USB
- 16 input channels plus aux additional inputs
- Cue, Level, Pan, Solo and Mute controls
- Mix Insert points
- Various solo and solo in place functions
- Sum and difference insert with exclusive ‘Stereo Width Control’
- Separate Monitor and Cue levels
- Main and Alt speaker outs
- Onboard talkback mic w/talkback input to Cue
- Units can be cascaded for multiple outputs
- 2U rackmount design with special shielded power supply
- 2 track return, plus iPod input
- Headphone outs on front and back
Audio Performance
- Input impedance: (balanced+4dBu) >20k Ohms
- Output impedance: (balanced +4dBu) 50 Ohms
- Max input level: (balanced) >+26dBu
- Max output level: (balanced) >+26dBu into 600 Ohms, (unbalanced) >+14dBu into 600 Ohms
- Frequency Response: Channel 1 line input to main output 20Hz to 20kHz +/- 0.5dB Better than –3dB @ 60Hz
- Noise: No channels routed. Better than -86dBu. 20Hz to 20kHz bandwidth. 1 channel routed. Better than -85dBu. 20Hz to 20kHz bandwidth. 16 channels routed. Better than -80dBu. 20Hz to 20kHz bandwidth
- THD Channel 1 line input to main: 0Hz to 20kHz, better than 0.02%
- measured at +20dBu into 10 Ohms with 80Hz filter
Options
- 192kHz analogue-to-digital conversion over AES & DSD with external Wordclock options
- 8804 Fader Pack option available
Dimensions
- Width: 482.6mm (19 inches)
- Height: 88mm (3.5 inches)
- Depth: 390mm (15.4 inches)
- Weight: 7kg (16 pounds)
