Length approx. 40 cm, signal flow / wiring from Lemo to BNC connector.

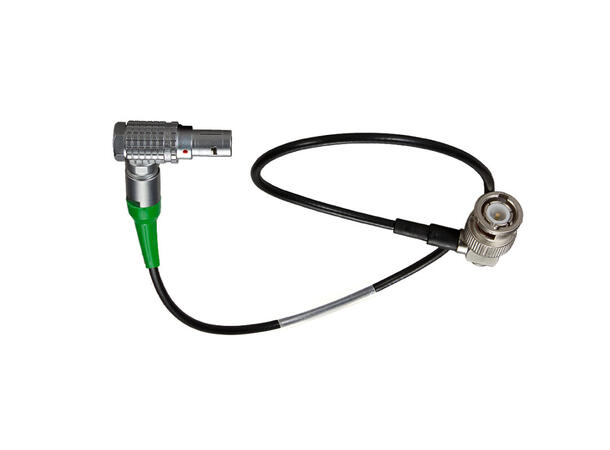

Timecode input cable with BNC right angle plug to 5-pin Push-Pull connector right angle, outlet 3 o’clock

Because different Push-Pull connectors are needed for differing cable outlet directions, it is mandatory to specify the required direction of the cable outlet.

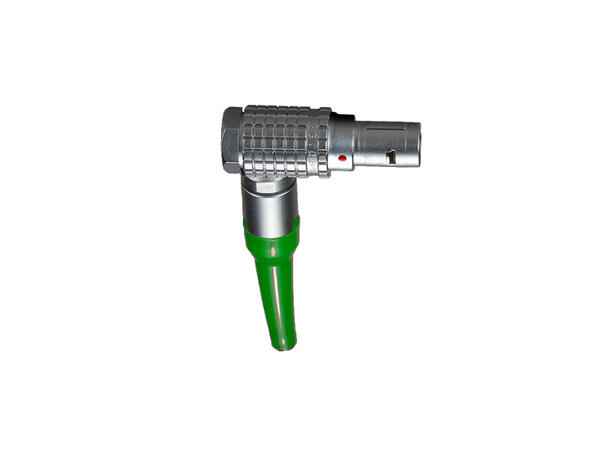

Viewing the plugged connector from back with the red dot on top, 3 o’clock (90 degrees).

The direction of outlet can not be changed.

Signal flow / wiring from BNC to Push-Pull connector
