Allen&Heath XONE:96

Xone:96. The long-awaited follow-up to a genuine club classic.

A new, uncompromising analogue DJ mixer, destined to be the heart of your creativity, Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity.

It’s all here. The huge, detailed, space-shaking analogue sound that only Xone delivers. A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box.

Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines.

Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware.

Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night.

Xone96: You mixed. We listened.

SPECS:

• Type Analogue
• Channels 6 + 2


EQ

• Channel 1-4, 4-Band EQ
• Channel A-B, 3-Band Parametric EQ

• USB Soundcards Dual 24 Channel (12 in / 12 out)
• Hi-Speed USB2.0 / Mac Class Compliant
• 32bit / 96kHz
• MIDI over USB

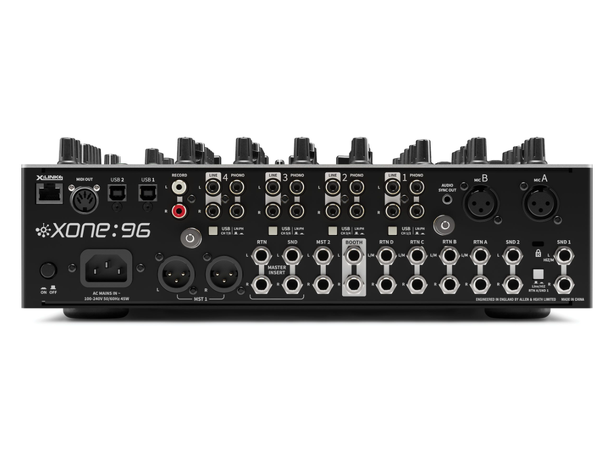

• Line Inputs 4 x RCA (CH 1-4)
• 4 x 1/4¨ TRS (CH A-D) Mono/Stereo
• Phono Inputs 4 x RCA (CH 1-4)
• LN/PH Switch for DVS
• USB Inputs 6 x USB (CH 1-4 + CH A – CH B)
• Mic Input 2 x XLR
• Master Output 1 x XLR (Balanced)
• Master 2 Output 1 x 1/4? TRS (Balanced)
• Booth Output 1 x 1/4? TRS (Balanced)
• Record Output 1 x RCA (Un-balanced)
• Master Insert 1 x 1/4? TRS
• MIDI Out 1 x 5-Pin DIN
• Send/Return I/O
• 2 x 1/4¨ TRS Send
• 4 x 1/4¨ TRS Return
• 1 x LN/Hi-Z Switch (SND1/RTNA)


Filter

• 2 x VCF Filter
• HPF / BPF / LPF
• Adjustable Frequency & , Resonance
• Assignable CH 1-4 + CH A-B
• CRUNCH (Controlled Harmonic Signal Distortion)

• X-Link 1 x RJ45


Headphones

• 2 x 1/4¨
• 2 x 3.5mm
• Split Cue Monitoring

• Channel Faders 60mm VCA / Replaceable
• Chanel Meters 9 Segment LED
• Channel Fader Curve 3 Types
• X-Fader InnoFADER / 45mm VCA / Replaceable
• X-Fader Curve 3 Types
• Earth Ground Terminals x 2
• Headroom 20dB

• AC Mains
• 100 to 240V
• AC 50/60Hz
• Consumption 45W max
• Mains Adaptor 3 pin IEC socket

• Height 109mm, Width 336mm, Depth 410mm
• Weight 7kg / 15.4 lbs.
