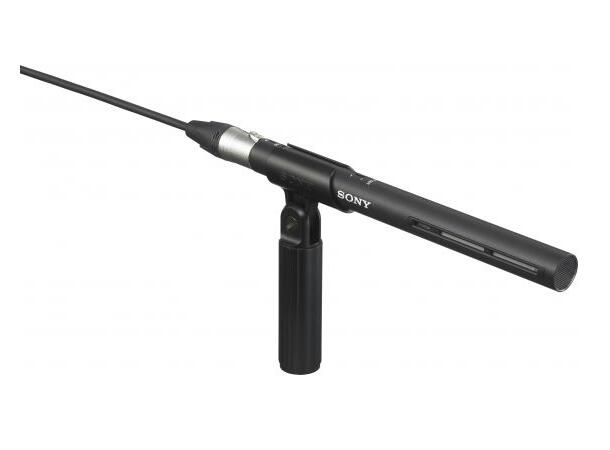

ECM-VG1
The ECM-VG1 is a short shotgun, electret condenser-type microphone,
which delivers excellent sound performance in field and studio
production applications at an affordable price. The ECM-VG1 is
well-suited for use with compact camcorders or attached to a boom pole.
This microphone requires 48 volt phantom power and connects using a
supplied XLR cable.
| Capsule Type |
Mono Electret Condenser |
| Frequency Response |
40 Hz to 20 kHz |
| Directivity |
Uni-directional (super-cardioid) |
| Sensitivity |
-33 dB ±3 dB |
| Dynamic Range |
107 dB or more |
| S/N Ratio |
76 dB or more (IEC179 A-weighted, 1 kHz, 1Pa) |
| Inherent Noise (0dB=20µPa) |
18 dB SPL or less |
| Induction Noise from External Magnetic Field |
0 dB SPL |
| Wind Noise |
45 dB SPL or less with windscreen |
| Max SPL (dB SPL)(0dB=20µP) |
125 dB SPL |
| Connector |
XLR-3 |
| Cable Length |
XLR 3-pin Cable
19.6 inches |
| Power Requirements |
DC 40 to 52 V |
| Dimensions |
ø13/16 x 8 3/8 inches |
| Weight |
2.3 oz |
