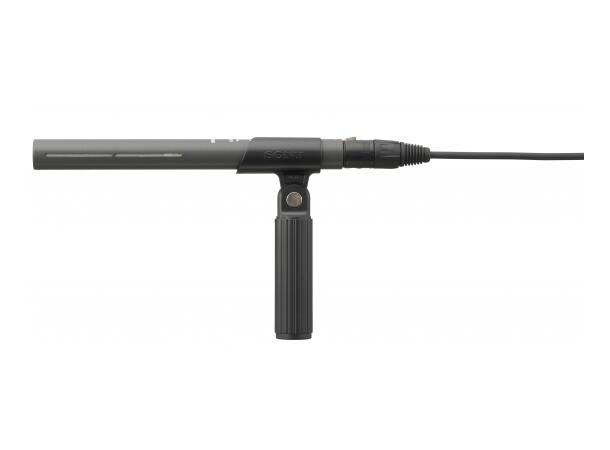

SONY ECM-673
The ECM-673 is a short shotgun, electret condenser-type microphone,
which delivers excellent sound performance in field and studio
production applications at an affordable price. Offering
high-sensitivity, low-noise characteristics and flat-and-wide frequency
response in a compact and lightweight design. The ECM-673 is well-suited
for use with Sony professional camcorders, such as the HDV™ Series,
DVCAM™ Series, and XDCAM™ Series. With its high performance, affordable
price, and great versatility, the ECM-673 microphone is an ideal choice
for a range of sound-acquisition applications.
Highlights:
- Uni-directional (Super Cardiod) Electret Condenser Shotgun Microphone, Phantom Powered
| General Specifications |
Detail: |
|---|
| Capsule Type |
Mono Electret Condenser |
| Frequency Response |
40 Hz to 20 kHz |
| Directivity |
Uni-directional (super-cardioid) |
| Sensitivity |
-36 dB ±3 dB |
| Dynamic Range |
107 dB or more |
| S/N Ratio |
77 dB or more (IEC179 A-weighted, 1 kHz, 1Pa) |
| Inherent Noise (0dB=20µPa) |
17 dB SPL or less |
| Induction Noise from External Magnetic Field |
0 dB SPL or less |
| Wind Noise |
45 dB SPL or less (with windscreen), 50 dB SPL (without windscreen), (0 dB SPL=20u PA) |
| Max SPL (dB SPL)(0dB=20µP) |
124 dB SPL |
| Connector |
XLR-3 |
| Cable Length |
XLR-3 to XLR-3
19.6 inches |
| Power Requirements |
DC 40 to 52 V |
| Dimensions |
ø13/16 x 7 7/8 inches |
| Weight |
4.76 oz |
