Rosendahl mif4 midi time code interface USB-MIDI interface, video sync reference Rosendahl mif4 midi time code interface USB-MIDI interface, video sync reference

Rosendahl mif4 midi time code interface

USB-MIDI interface, video sync reference

Varenr: 120
-+
Bestillingsvare (40 dager)
BeskrivelseRESSURSER
Beskrivelse

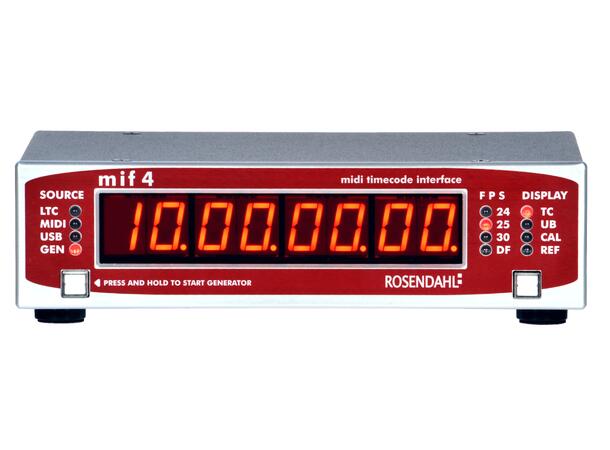

Rosendahl mif 4 professional midi timecode interface

Digital audio workstations as well as lighting and show control software make use of
MTC midi timecode for synchronisation.
The new mif4 provides professional interfacing to standard LTC (SMPTE) timecode.
Rosendahl sync algoritms suppress timecode jitter and drop outs.


SOURCE = LTC  read LTC (SMPTE) timecode, display and convert into MTC/USB midi time code
and regenerate LTC (SMPTE) timecode.
SOURCE = MIDI  read MTC from MIDI input, display and convert into LTC (SMPTE)
and regenerate MTC/USB midi timecode.
SOURCE = USB  read MTC from USB, display and convert into LTC (SMPTE)
and regenerate MTC/USB midi timecode.
SOURCE = GEN  the timecode generator can be set up and started manually
or remote controlled by MMC midi machine control comands.
FPS  timecode standards are automatically detected and displayed by the four FPS LEDs
(24, 25, 30 Frames Per Second, DF is SMPTE Drop Frame standard).
DISPLAY = TC  shows timecode in hours, minutes, seconds and frames.
DISPLAY = UB  SMPTE user bits, 8 nibbles shown hexadezimal.
DISPLAY = CAL  informs about timecode speed.
29.97 non drop timecode for example is indicated by 30 FPS LED and calibration 0.990.
DISPLAY = REF  PAL or NTSC video syncs (576i, 480i) as well as HD tri-level syncs (720p, 1080i, 1080p)
are automatically detected and displayed along with their frame rate.
