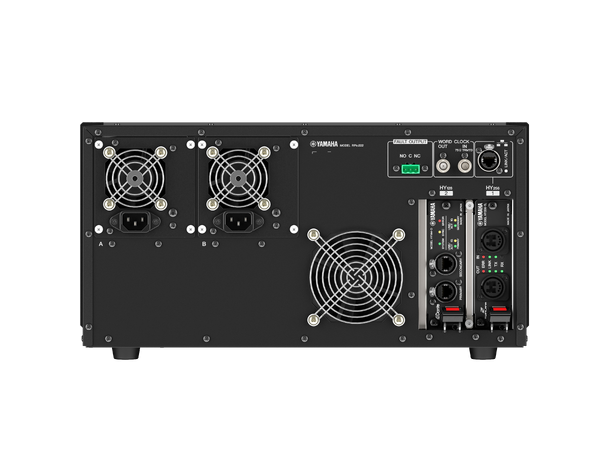

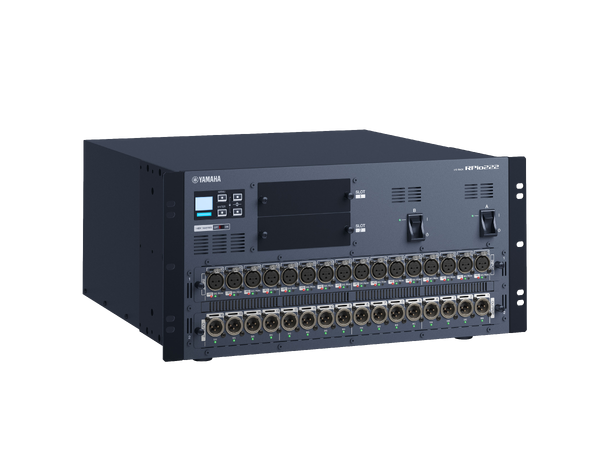

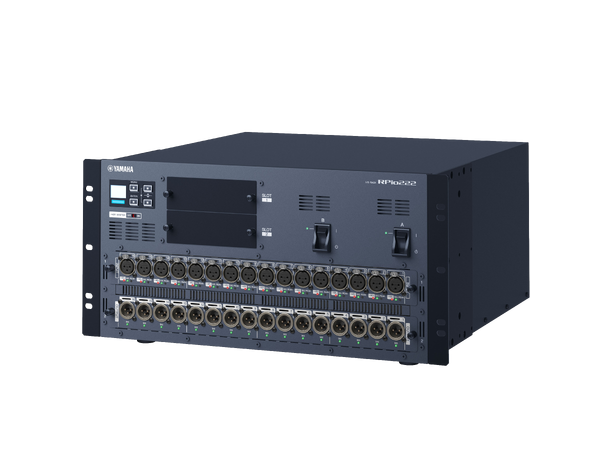

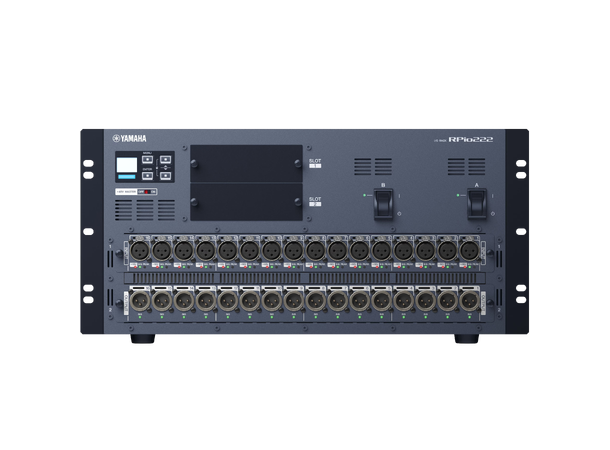

Yamaha RPio222 I/O Rack

The RPio222 I/O rack features two RY card slots that provide flexible analog and digital I/O configuration and expansion capability for RIVAGE PM series systems employing low-latency TWINLANe networking. Dual power supply units are built in.

    Two RY card slots that enable you to expand analog inputs and outputs, and/or digital inputs and outputs.
    Two HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
    HY card slot 1 features 256 ins/outs, and HY card slot 2 features 128 ins/outs.
    Two mini-YGDAI slots to support various audio formats.
    Dual redundant power supply built-in
    Power consumption: 115W
    Dimensions (WxHxD): 480 x 232 x 491mm (5U rack size)
    Net Weight: 19 kg
